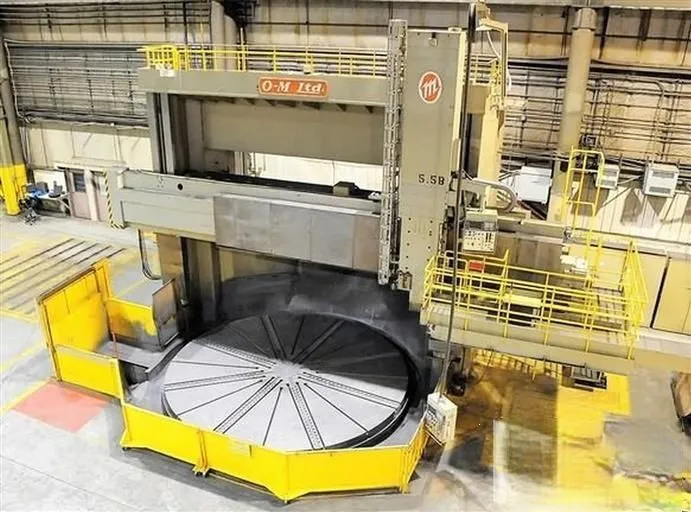

Used 1999 O-M TMD-55/60N | Vertical Boring Mills (incld VTL)
Have one to sell?
ConditionUsed
1 available
Excellent condition with low hours of use. 216" table diameter that will swing 236"!
2 Fanuc 18i controls. One can be used on ground level, one can be used on the catwalk.
2 machines available for immediate purchase. (2000 & 1995).
Buyer to verify all specifications:
Table Diameter 216.53"
Maximum Turning Diameter 236.22"
Maximum Turning Height 145.66"
Horizontal Travel of Rail Head 135.82"
Vertical Travel of Cross Rail 102.36"
Ram Stroke 78.74"
Ram Cross Section 11.02"
Table Speed (3- Ranges) .3-45 RPM
Table T-Slots (Nominal)................ 1.65" 1.65"
Table Weight Capacity 132,277 Lbs.
Table Motor 80 HP / 100 HP
Approx. 8 trucks will be needed upon removal.
Fanuc 18i-TB CNC Control - Dual Operator Controls
T-Slotted Table with (4) Face Plate Type Jaws
Vertical Ram with Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation
Independent Operator Platform and Lift
Steel Sliding Way Covers
100 HP Table Drive
