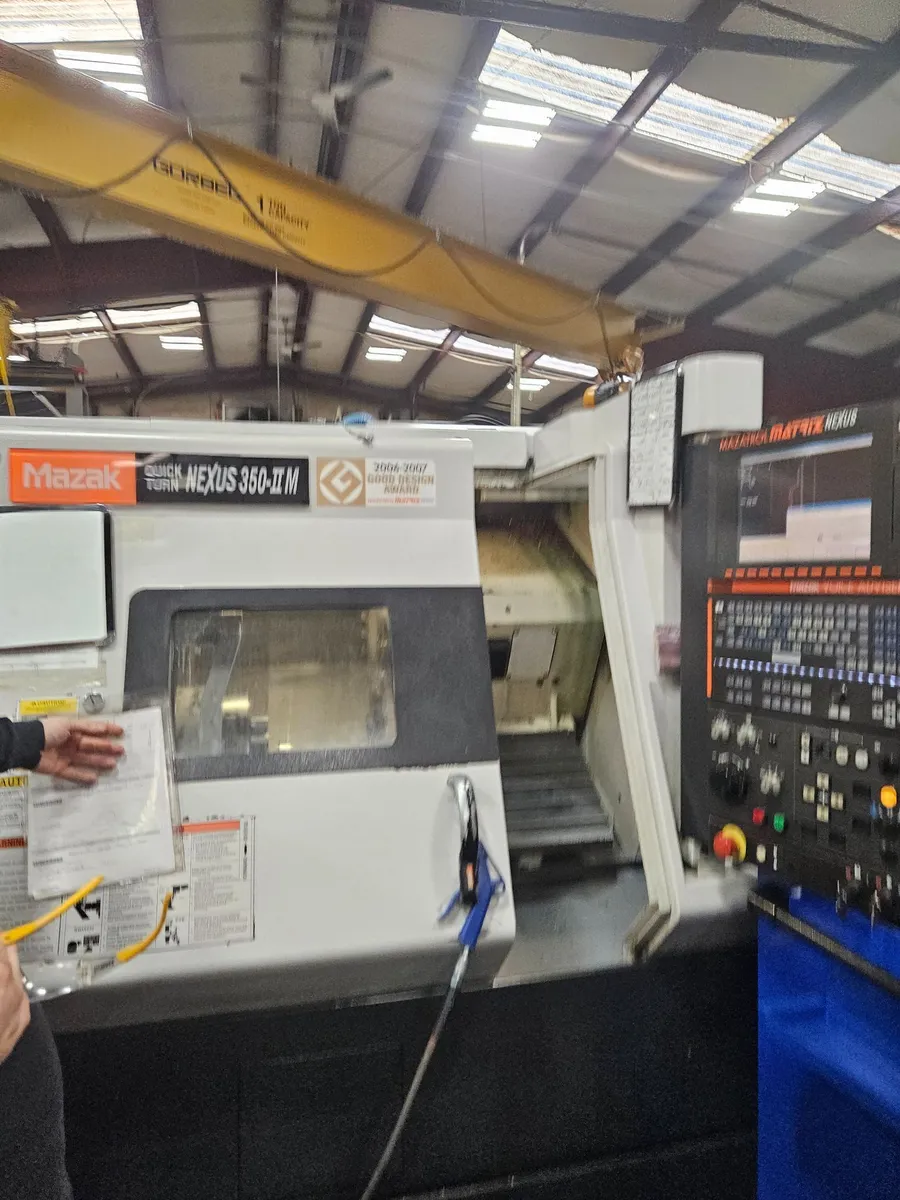

Used 2007 MAZAK QTN-350-II-M | CNC Lathes
Have one to sell?
ConditionUsed
1 available
Milling - 12" Hyd. Chuck
Buyer to verify all information:
Maximum Swing: 29.5"
Swing Over Carriage: 20.87"
Maximum Cutting Diameter: 16.5"
Maximum Cutting Length: 80.6"
Spindle Nose: A2-11
Hole Thru Spindle: 4.4"
Spindle Speed: 3300 RPM
Rotary Tool Spindle Speed: 4000 RPM
Rotary Tool H.P.: 10 HP
Turret Configuration: 12-Position
Turret Clamping Force: 11,700 Lbs
Stroke:
X-Axis: 10.2"
Z-Axis:
C Axis: 0001 ° increments
Rapid Traverse Rates:
X-Axis: 1181 IPM
Y-Axis: 1299 IPM
Z-Axis: 555 RPM
Tailstock Quill Diameter: 3.94"
Tailstock Center: MT#5
Main Motor: 40 HP / 30 HP
Mazatrol Matrix Nexus CNC Control
12” Hydraulic Chuck
Tool Eye
Chip Conveyor
