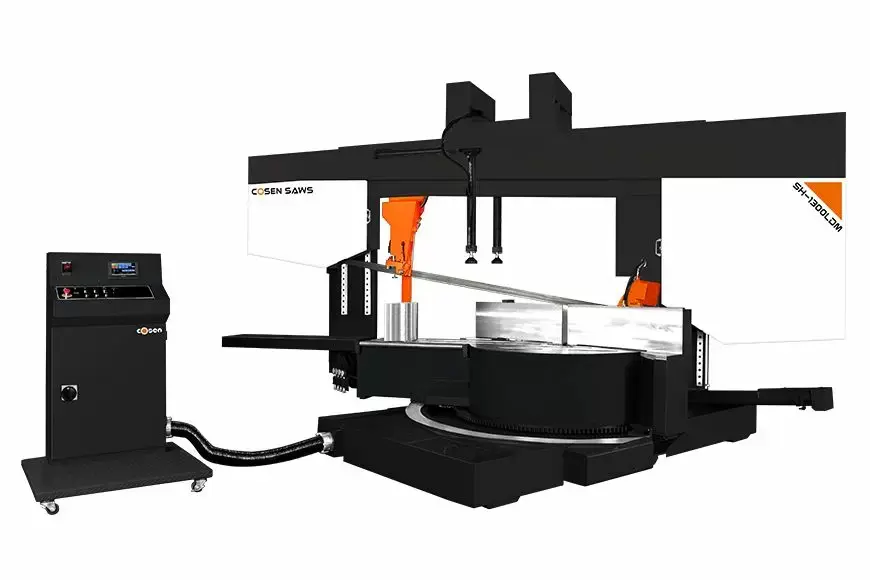

1300mm Semi-Automatic Horizontal Dual Post Dual Mitering Band Saw Machine

Description

Band Saw Machine

1300mm versatile horizontal double miter-cutting band saw is notable for its large capacity. This bandsaw machine enables miter cutting both forward and backward up to 60°. It features a 10° blade cant, specifically designed to cut structural steel such as H-beams, I-beams, channels, and profiles, ensuring optimal cutting performance under various conditions.

Fast & accurate mitering via automatic angle positioning-Key in your desired cutting angle via the HMI touchscreen, and the saw frame will automatically swivel, first quickly then finely positioning to the exact angle with an accuracy of 0.1°.
Saw bow linear guides-The hydraulically driven saw frame travels along two linear guides, which allow for a smooth and pulse-free up-down movement and durability for long term use.
Guide arm in sync with full stroke hydraulic vise-The guide arm travels along one linear guide and moves in sync with the full stroke hydraulic vise to always minimize blade vibration when cutting.
Full stroke top clamp-The optional full stroke top clamp also moves in sync with the vise, allowing the material, regardless of size and shape, to always be securely held down during a cut.
Movable vibration damper- This device can move and clamp the top of the blade, supporting the blade while cutting material which effectively reduce the blade vibration and high frequency noise.

Standard Features

• 10° blade cant for cutting large structural material.
• Rigid linear-guide square columns design.
• Power gear driven rotating mechanism.
• Hydraulic angle lock-down.
• Specially designed heavy-duty gearbox.
• Inverter-controlled blade speed.
• Hydraulic clamping vise.
• 10" HMI touch screen with error code feedback.
• Instant readout on blade speed, blade life and miter angle.
• Precision feed rate and feed pressure valve.
• Adjustable control panel at waist level.
