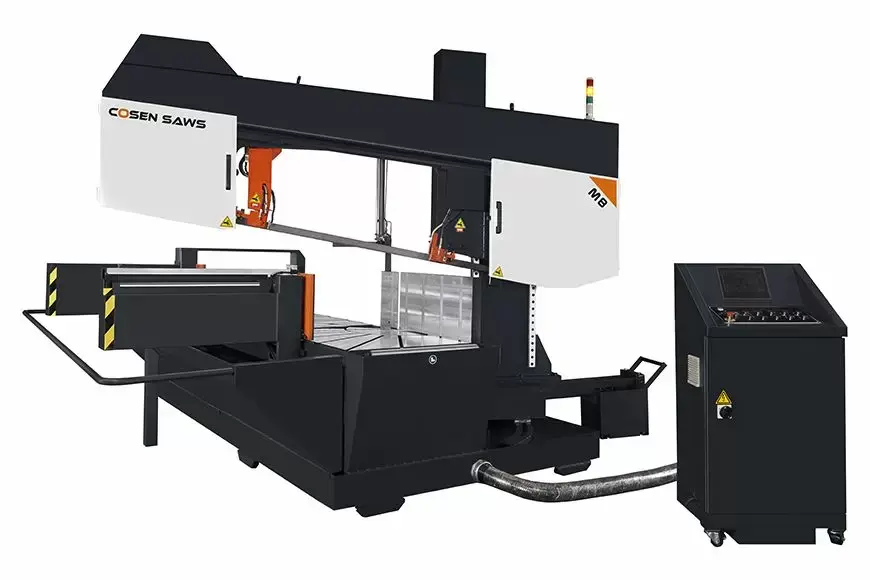

800mm X 500mm Double Miter, 30 Degree To 150 Degree Angle Cutting Machine For Structural Material

Description

Two ways swivel, Angle cutting band saw for cutting Structural material

This bandsaw machine has a capacity of 500mm for round materials and a width of 800mm. It features a large-angle swivel, ranging from 30 degrees to 150 degrees, which allows the machine to make cuts at various angles. The machine's 2000mm stroke helps to save feeding time. It is designed for cutting structural materials, such as H beams, I beams, pipes, and channels. Equipped with Smart Numerical Control, the M5 model is user-friendly and ideal for mass production.

The Smart Numerical Control technology can be programmed for up to 100 different jobs, including the quantity and length of each cut, with features like Automatic Multiple Indexing and Automatic Kerf Compensation. Cutting information, such as blade speed, down feed speed, cutting rate, blade life, and error messages, is clearly displayed for ease of use.

This bandsaw is designed for cutting structural materials such as H beams, I beams, and pipes, with a width of up to 800mm. It features angle cutting capabilities ranging from 30 degrees to 150 degrees. The machine is equipped with an automatic programming function, which facilitates easy mass production. Additionally, it boasts a 2000mm stroke that can be completed in just 12 seconds, significantly saving feeding time.

Standard Features

• 10" HMI Touch Screen & Mitsubishi PLC Controller.
• 100 individual jobs can be programmed and stored.
• Automatic kerf compensation.
• "Save-a-Blade" function.
• Rapid troubleshooting via error feedback system.
• Scrape-free vise plates.
• Full stroke hydraulic cylinder.
• Inverter-controlled infinitely variable blade speed.
• Automatic hydraulic blade tension device.
• Hydraulic Chip Conveyor.
• Vibration Damper.
• Blade Height Decoder.
