NC Programmable Automatic Feeding Traversing Head Vertical Plate Saw

Description

Longitudinal Cutting Vertical Bandsaw

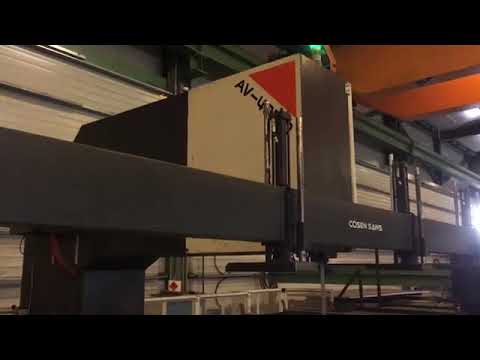

This extremely heavy-duty traversing head vertical plate saw incorporates a rigid traversing saw head, a solid work table embedded with multiple rollers, a 10 HP blade motor, a highly-efficient planetary gear box, 41mm wide blade, and the servo motor driven clamping feeders.

AV-40150 can be programmed to conduct automatic longitudinal cuts of desired width. Servo-driven clamping feeders feed material to programmed width automatically. These features combined make AV-40150 an ideal solution for cutting long stripes anywhere along the width of a plate.

Standard Features

• Super rigid, extra wide traversing saw head with three-wheel design.
• Servo motor driven saw frame travel via precision ground round steel wheels on two heavy duty linear rails.
• Smooth pulse-free feed speed. Precise feed speed to cut any material. Quick speed for rapid saw frame travel.
• Solid work table embedded with multiple rollers.
• 10 HP blade motor and highly efficient planetary gearbox.
• Inverter blade drive system incorporating infinitely variable blade speeds.
• Hydraulically controlled robust cast-iron guide arms.
• Double wire brush.
• High pressure coolant wash system.
• Powered chip removal system.
• Automatic blade tensioning device.
• Two servo-driven clamping feeders clamp and feed material to programmed width automatically.
• Floating vises clamp from under then from above the material.
• Laser alignment beam light.

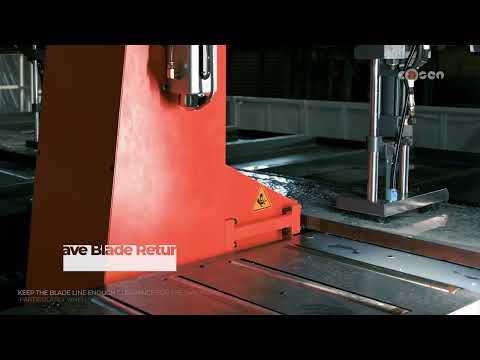

• Safe blade return before next cut.
• Automatic guide arm positioning.
• Independent control station.
• Mitsubishi PLC controller and 10" Color Touch Screen.
• Push buttons for most frequently used saw actions for ease of operation.
• 100 cutting jobs can be programmed, stored and recalled.
• Separately programmable cutting rates for blade entry and exit.
• Last Cut Function.
