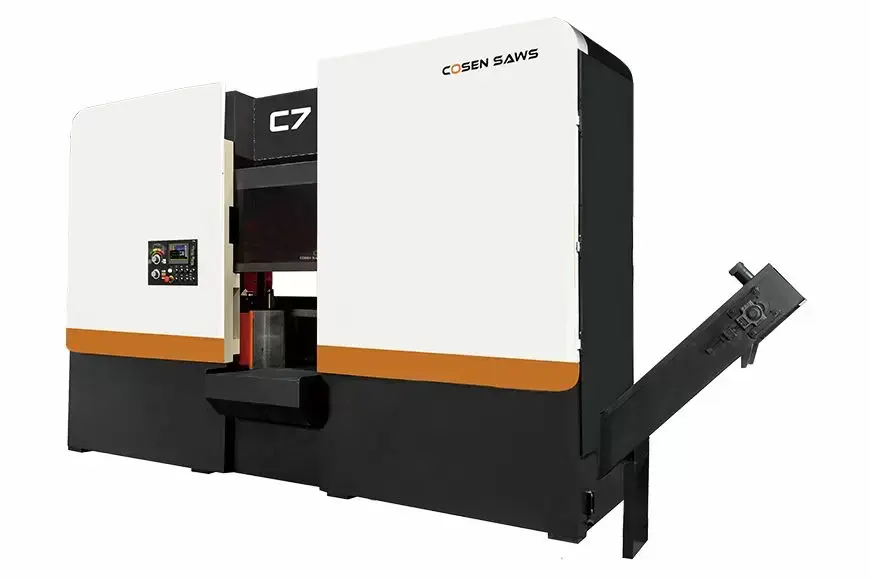

700 X 660mm Metal Cutting NC Automatic Horizontal Column Type Band Saw Machine

Description

This 700 x 660 mm fully enclosed column type automatic band saw features Cosen's Smart NC+ control system, and it offers automatic first (trim) cut, a customizable material feed & speed database, plus storage and queue of up to 100 jobs. While controlled hydraulically, the saw frame rides on linear guide ways (rails), which ensures the smoothest feeding and highest precision guide system available today.

With its enclosed design, rigid structure, 15 HP direct drive, 54 mm wide blade, and simple yet useful controls, Cosen's C-Tech C7 band saw is the perfect saw for demanding production settings, where ease of use and safety is always priority.

Standard Features

• Dual columns and large robust saw frame design providing sound structural strength.
• High precision linear guide way design on both saw frame and shuttle vise travels.
• Ergonomic door frame design with ample clearance for material unloading.
• 15HP Direct drive inverter motor and helical bevel gearbox.
• Inverter-controlled infinitely variable blade speed.
• Vibration damper.
• Motor driven wire brush.
• Automatic hydraulic blade tensioning.
• Servo controlled ball screw driven shuttle vise.
• Full stroke hydraulic front and rear vises.
• Automatic guide arm positioning in sync with vise Mitsubishi PLC controller and 7" • HMI touch screen.
• Cosen Smart SNC+ System with material database, 100 cutting jobs storage, blade speed control and blade life display.
• Automatic First Cut (Trim Cut).
• Instant reading on blade speed, cutting rate, blade life & blade height display.
• LED work light.
• Bi-metal blade x 1.
