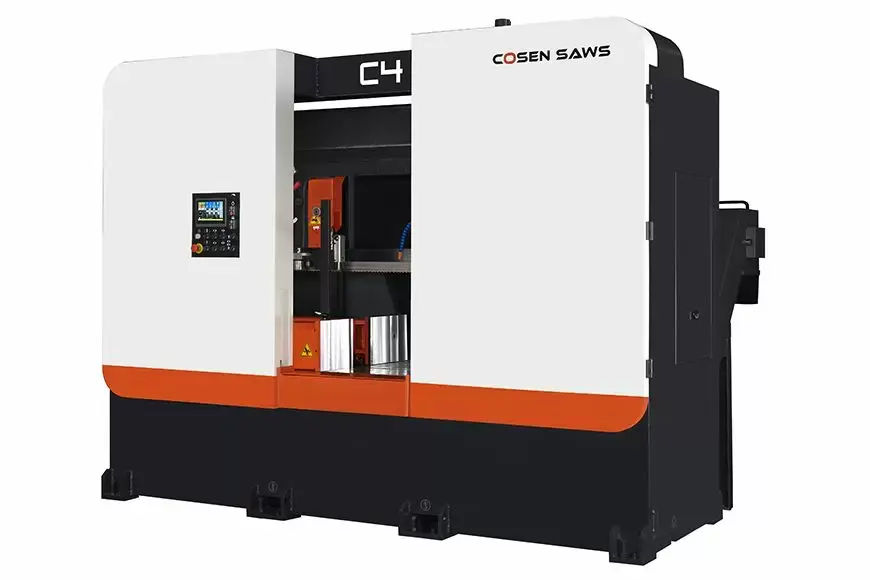

NC Programmable Automatic Band Saw For Mass Production

Description

The NC programmable automatic band saw for mass production, is equipped with Cosen's advanced NC control system. This system enables automatic execution of the initial cut and allows for the storage of up to 100 jobs. Additionally, it includes all the features of the SNC-100 control system, enhancing its functionality and user experience. The ball screw driven saw frame rides on linear guide ways (rails).

These designs help to give the frame a rigid base thereby ensuring the smoothest feeding, highest precision, and lowest friction guide system available today. With their rugged and dependable enclosed frame designed for safety, and their advanced technology, Cosen's C-Tech Series band saws are the perfect enclosed saws for mass production settings.

Standard Features

• Large robust saw frame design providing sound structural strength.
• High precision linear guide way design (ball screw) on both saw frame and shuttle vise travels.
• Ergonomic door frame design with ample clearance for material unloading.
• Direct drive motor and bevel gearbox.
• Inverter-controlled infinitely variable blade speed.
• Rigid cast-iron guide arms.
• Vibration damper.
• Motor driven, synchronized wire brush.
• Automatic hydraulic blade tensioning.
• Ball screw driven shuttle vise.
• Full stroke cast-iron hydraulic vise riding on linear rails.
• Automatic guide arm positioning in sync with vise.
• Mitsubishi PLC controller and 7" HMI touch screen.
• Cosen SNC-100 System with 100 cutting jobs storage, blade speed control and blade life display.
• Automatic First Cut & Last Cut.
• Instant reading on blade speed, cutting rate, blade life & blade height display.
• LED machine lights.
