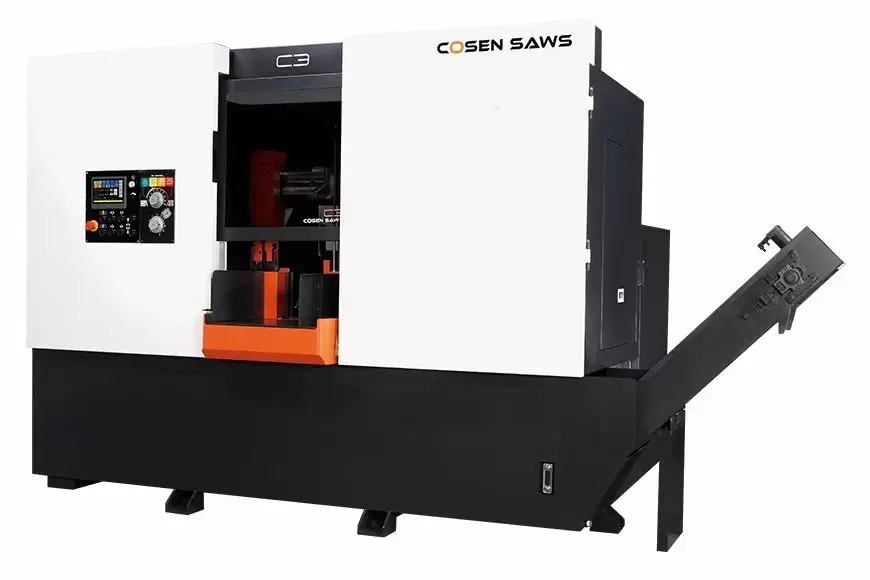

360mm Metal Cutting NC Automatic Horizontal Column Type Band Saw Machine

Description

Cosen C-tech dual column bandsaws feature Smart NC+ system. The programming allows for automatic first (square) cut, storage of up to 100 jobs, automatic multiple indexing, & kerf compensation. Cutting information such as job status, blade speed, blade life, and error message are clearly displayed on a 7" color HMI for ease of use. Hydraulically controlled feed force and feed rate valves ensure best cut setting for each material while the saw head rides on a double linear rail guided system. This design ensures the smoothest cutting with the highest precision guide system available today.

With its rigid structure, a 7.5 HP (5.62 kw) inverter drive, 41 mm wide blade, and easy to use controls, Cosen's C3 band saw is compact in size, yet fits the need of any job shops, machine shops, or demanding production shops.

Standard Features

• High precision linear guide way design.
• Enclosed saw frame design is safe and dependable.
• Gearbox designed to accept high lateral pressure (no thermal distortion).
• Inverter blade drive system which allows infinitely variable blade speeds.
• Rigid cast-iron guide arms.
• Carbide blade guides and bearings provide additional blade support.
• Vibration damper.
• Motor driven, synchronized wire blade brush.
• Adjustable flood coolant system.
• Automatic hydraulic blade tensioning device.
• Full stroke cast-iron hydraulic vise.
• Split front vise jaw for reduced burr and shorter remnant.
• Automatic guide arm positioning in sync with vise.
• 7" HMI touchscreen.
• Dual valve feed pressure and feed rate system for optimal cutting performance.
• Computer controlled multiple indexing up to 999" max length.
• Automatic First Cut.
• Instant reading on blade speed.
• Automatic kerf compensation & "Save-a-Blade" function.
