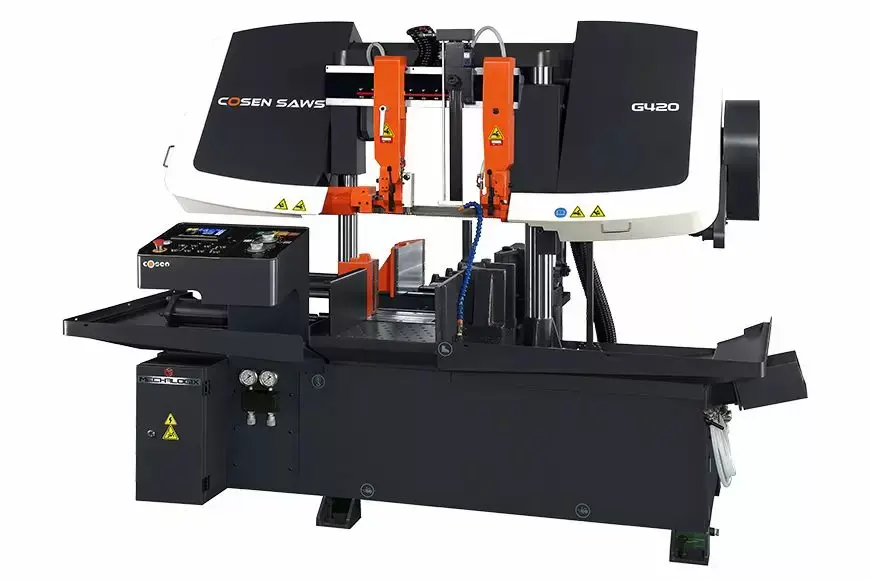

420mm Round Automatic Dual Column Type Band Saw

Description

Band Saw Machine

420mm Automatic dual column type band saw incorporates a 7.5 hp powerful blade motor, 41 (mm) wide blade, independent control panel, and heavy-duty dual column design. These features create a very rigid, dynamically stable and productive machine. The oversized precision ground columns ensure smooth saw frame movement and the consistently stable cutting force required throughout the cutting cycle, thereby increasing the cutting efficiency and extending blade life.

Standard Features

• 7" HMI Touch Screen.
• Oversized hydraulic cylinder supports the rugged saw frame with heavy-duty universal ball joint accomplishing smooth & consistent down feed through the entire cutting cycle.
• The two wheels adopt high-level cast iron and been heat treatment to ensure endurable and long-life.
• Carbide guides securely guide the blade during the cutting cycle. The carbide is relieved so that coolant can both cool and lubricate the blade during the cut.
• Integral coolant system.
• Synchronized power driven blade brush effectively cleans chips from blade to extend blade life.
• Blade speed display.
• Blade life indicator.
• Feed vise position display.
• Automatic hydraulic blade tension device.
• Save-A-Blade feature.
• Precision feed pressure and feed rate dual valve system for optimal cutting performance.
• Computer controlled multiple indexing up to 999" max length.
