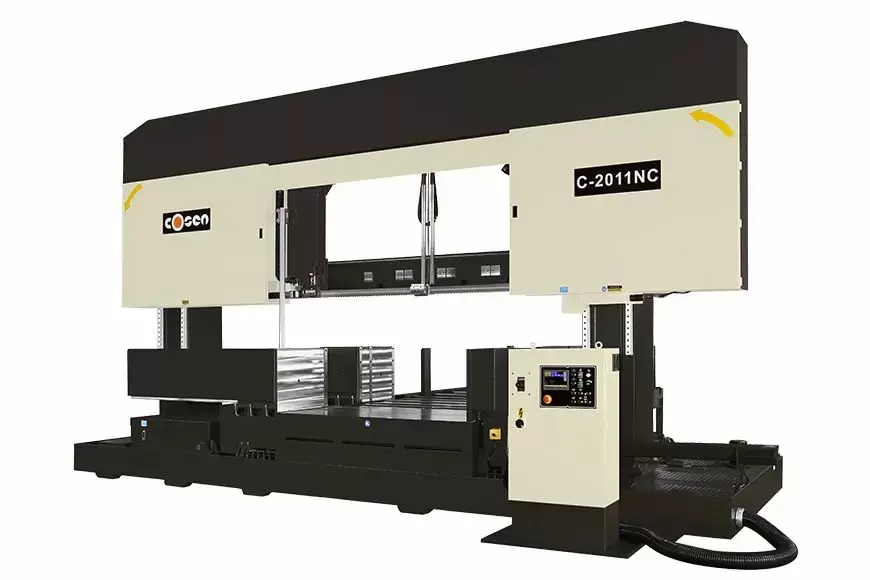

1100mm X 2000mm Double Columns, Heavy Duty Straight Cutting Band Saw Machines

Description

Billet Saw for Cutting Billets, Plates, Block

1100mm x 2000mm Band saw machines with double column design ensure stable cutting pressure throughout the cutting cycle. Saw frame and work height selector allow operators to preset work height to save cutting time.

The Smart numerical control technology is programmable up to 100 different jobs including quantity and length of cut with Automatic Multiple Indexing & Automatic Kerf Compensation.
Cutting information such as blade speed, down feed speed, cutting rate, blade life and error message is clearly displayed for ease of use.

Standard Features

• Double column design.
• Straight cutting design.
• 1100mm round.
• 1100mm H x 2000mm W rectangle.
• 25hp saw frame motor.
• 5hp hydraulic motor.
• 1.5hp coolant pump.
• Saw blade width 80mm.
• 10" HMI Touch Screen & Mitsubishi PLC Controller.
• 100 individual jobs can be programmed and stored.
• Automatic kerf compensation.
• "Save-a-Blade" function.
• Rapid troubleshooting via error feedback system.
• Scrape-free vise plates.
• Full stroke hydraulic cylinder.
• Inverter-controlled infinitely variable blade speed.
• Automatic hydraulic blade tension device.
• Hydraulic Chip Conveyor.
• Vibration Damper.
• Blade Height Decoder.
