510mm Automatic Horizontal Band Saw

Description

Band Saw Machine

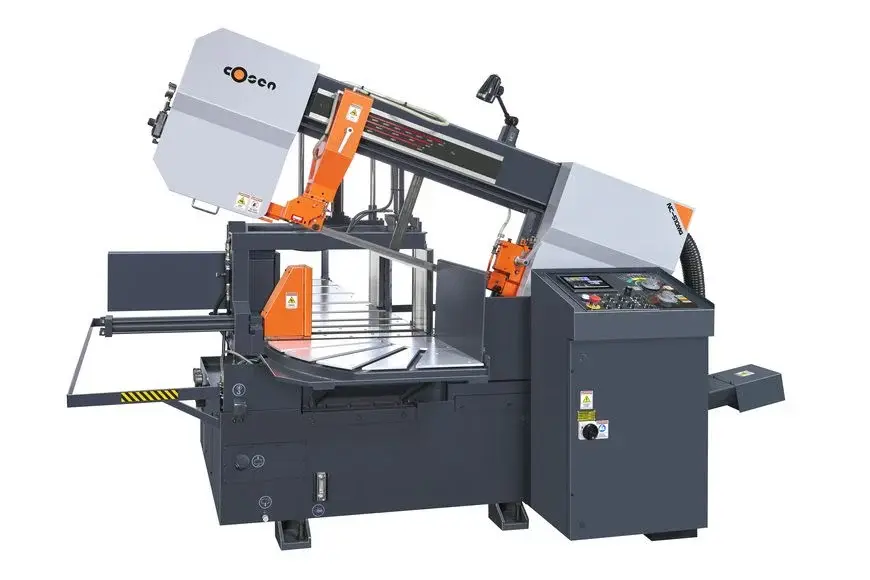

Cosen's NC-510MG is a high production fully programmable automatic miter-cutting bandsaw, which incorporates a massive base, sturdy saw frame, a 5HP drive motor, 34 mm wide blade and a user-friendly control station.

Standard Features

• Sawhead swivels forward up to 60° via precision pivot system
• Quick angle change with a large protractor and pointer in clear view
• Large discharge table slotted at common cutting angles and bui lt with coolant return
• 7.0”HMI Touch Screen & Mitsubishi PLC Controller100 individual jobs can be programmed and stored
• Automatic work height sensor with position adjustable via a quick lock & release handle
• Adjustable right guide arm for optimum cutting stability at bigger angles
• Inverter controlled variable blade speed drive with worm gearbox
• Full stroke hydraulic front and index vise
• Precision feed pressure & feed rate dual valve
• Automatic hydraulic blade tension device
• Automatic kerf compensation
• Save-a-Blade function
• Rapid troubleshooting via error feedback system
