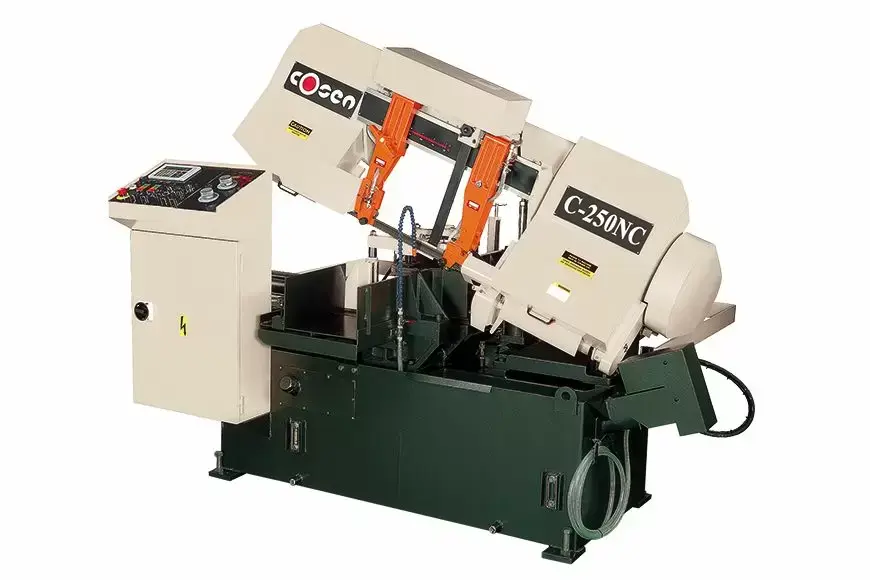

250mm Round Automatic Programmable Band Saw

250mm Round Automatic Programmable Band Saw

Have one to sell?
(858) 578-7986
sales@compasscnc.com
ConditionNew
Have one to sell?

Overview

Type:
Horizontal Band Saws
Manufacturer:
COSEN
Model:
C-250NC
Condition:
Build To Order
Status:
For Sale

Description

Band Saw Machine

250mm Round Automatic Programmable Band Saw machine is a high production machine which incorporates a massive base, sturdy saw frame, with an extremely heavy-duty gear box, a 3HP drive motor, and a user-friendly programmable control for ease of operation.

Standard Features
• 7" HMI touch screen.
• Scratch-free wear plates used in vises.
• Variable speed hydraulic chip auger.
• Hydraulic tension cylinder with built-in on/off valve.
• A sturdily built saw bow.
• Full stroke hydraulic cylinder.
• Spiral type chips conveyor.

Optional Accessories
• 2M heavy duty roller table.
• Hydraulic top clamps.
• Vise pressure regulator.

Rect-Cap (H)9.8"248.92 mm
Rect-Cap (W)11"279.4 mm
Rounds-Cap9.8"248.92 mm
Square-Cap9.8"248.92 mm
Power3 hp2.2 kW
Type (Auto, Manual, Semi)AutoAuto
Blade Width1.3"33.02 mm
Blade Thickness0.04"1.016 mm
Blade Length138"3,505.2 mm
Weight3080 lb3080 lb

Type Of Saw
Horizontal

Automation
Automatic

Miter
NO

Automation Type
SNC

Production Line
Horizontal-Pivot

Capacity-Max. Height (Mm)
≦250

Capacity-Max. Width/Throat (Mm)
≦250

Capacity-Round (Mm)
250

Top Clamp-Min.~Max. Height (Mm)
50~120

Blade / Circular Saw Width (Mm)
34

Blade Speed Min.~Max. (M/Min)
16~105
