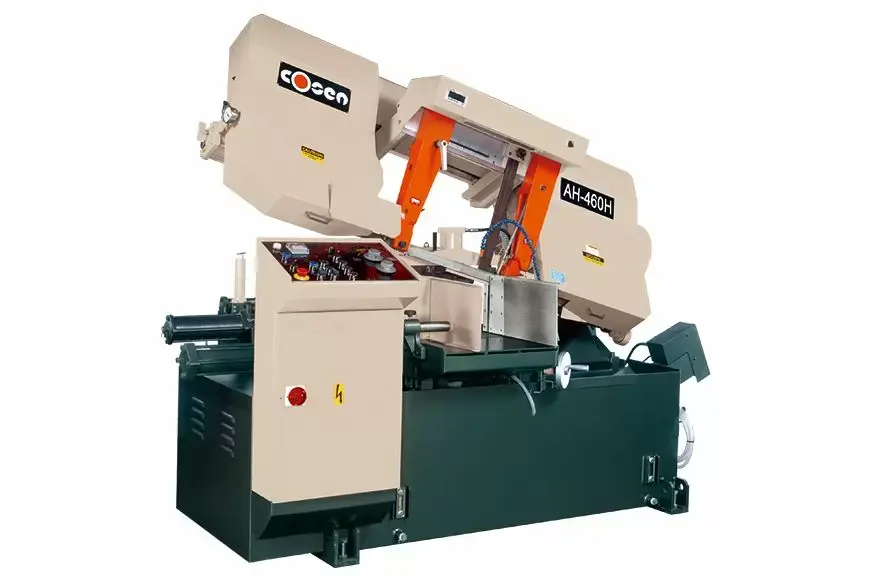

460mm Metal Cutting Automatic Horizontal Scissor Type Band Saw Machine
Have one to sell?
ConditionNew
New
460mm Metal Cutting Automatic Horizontal Scissor Type Band Saw Machine utilize hydraulic shuttle feed system, which offers extremely tight tolerances in both cutting repeatability and accuracy even at high cutting rates. These machines are built for high to extreme production needs. Ideal for job shops or production facilities requiring long term reliability. AH series band saws offer dependability, precision, and ruggedness at an affordable price.
Standard Features
• Infinite blade speed control with inverter.
• Split front vise.
• Idle wheel motion detector.
• Precision pressure and feed rate dual valve.
• Hydraulic blade tension device.
• Self lubricating carbide and roller guide.
• Independent control station.
• Built in work light.
• Full stroke hydraulic front / rear vises.
• Double retracting vise.
Optional Accessories
• Vibration damper
• Hydraulic nesting fixture
• Power roller table
• Roller table (2M) with side roller
• Vise pressure regulator
• Hydraulic chip conveyor
• Deviation detector
Type Of Saw
Horizontal
Automation
Automatic
Miter
NO
Automation Type
NC
Production Line
Horizontal-Pivot
Capacity-Max. Height (Mm)
≦460
Capacity-Max. Width/Throat (Mm)
≦460
Capacity-Round (Mm)
460
Top Clamp-Min.~Max. Height (Mm)
90~230
Blade / Circular Saw Width (Mm)
41
Blade Speed Min.~Max. (M/Min)
20~120
