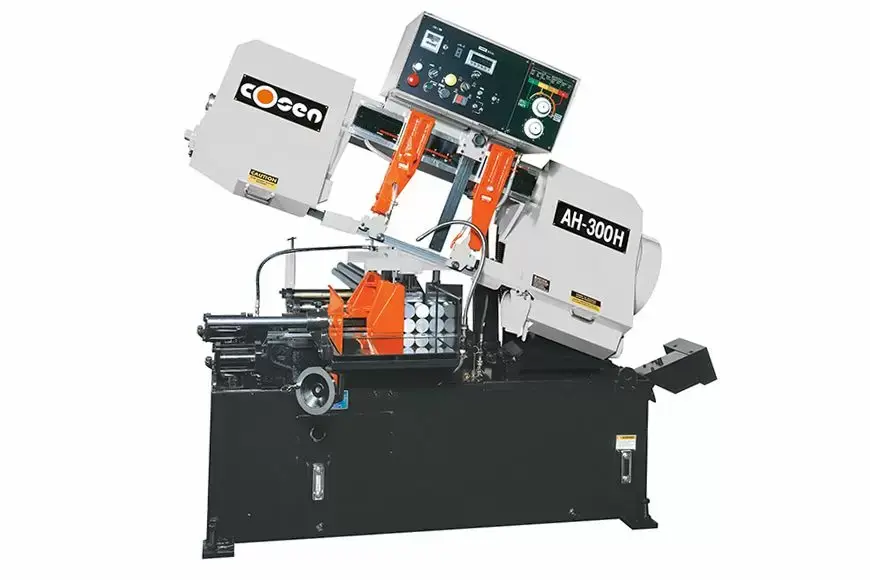

Cosen's 300 mm Metal Cutting Automatic Horizontal Scissor Type Band Saw is the perfect heavy-duty horizontal band saw for those seeking fast cuts and a great finish. Renowned for its rigidity, this Cosen saw ensures top performance while remaining within your budget.
Standard Features
• Back-tilt saw frame design allowing for less blade twist & longer blade life.
• Hydraulic cylinder plus precision ground hinge support.
• Gearbox designed to accept high lateral pressure (no thermal distortion).
• Variable blade speed drive.
• Carbide blade guides and bearings provides additional blade support.
• Motor driven, synchronized wire blade brush.
• Adjustable flood coolant system.
• Automatic hydraulic blade tensioning device.
• Indexing Length Control provides for accurate and easy set up in increments of 0.05 mm (0.001").
• Cast-iron hydraulic vise.
• Split vise jaw for reduced burr.
• Dual valve feed pressure and feed rate system for optimal cutting performance.
• Automatic work height selector and quick approach bar.
• Blade speed display.
• Work light.
Optional Accessories
• Hydraulic Chip Conveyor
• Vise Pressure Regulator
• Hydraulic Top Clamp
• 2M Roller Table
Type Of Saw
Horizontal
Automation
Automatic
Miter
NO
Automation Type
NC
Production Line
Horizontal-Pivot
Capacity-Max. Height (Mm)
≦300
Capacity-Max. Width/Throat (Mm)
≦340
Capacity-Round (Mm)
300
Top Clamp-Min.~Max. Height (Mm)
70~140
Blade / Circular Saw Width (Mm)
34
Blade Speed Min.~Max. (M/Min)
15~100
