Cosen's 250 mm Metal Cutting Automatic Scissor Type Horizontal Band Saw represents industrial horizontal band saws. It offers precise cuts and an excellent finish, a testament to Cosen's renowned rigidity, all within an affordable budget. This classic design incorporates automatic rollers and a length stop system in the AH-250R model, facilitating automated cutting that accommodates both your budgetary constraints and floor space limitations.
Standard Features
• Back-tilt saw frame design allowing for less blade twist & longer blade life.
• Precision gearbox is hardened for prolonged usage time.
• Four-step blade speed or optional variable blade speed is available to suit different material types.

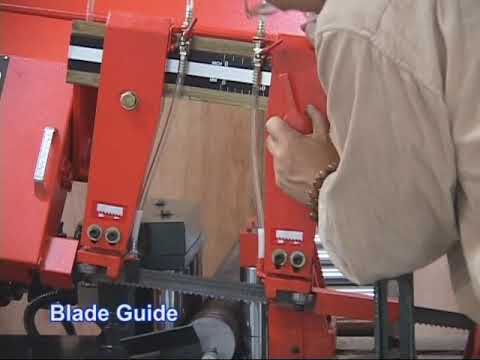

• Carbide blade guides and bearings provides additional blade support.
• Motor driven, synchronized wire blade brush.
• Adjustable flood coolant system.
• Manual blade tension controller makes blade change quick and easy.
• Roller and length stop system enabling automatic feeding.
• Quick set up vise.
• Cutting piece counter.
• Sawhead return height can be adjusted according to work height, increasing work efficiency for users.
• Sawhead automatically rises after completion of cut.
Optional Accessories
• Infinitely variable blade speed device
• 1M / 2M roller table
Type Of Saw
Horizontal
Automation
Automatic
Miter
NO
Automation Type
NC
Production Line
Horizontal-Pivot
Capacity-Max. Height (Mm)
≦230
Capacity-Max. Width/Throat (Mm)
≦250
Capacity-Round (Mm)
250
Blade / Circular Saw Width (Mm)
34
Blade Speed Min.~Max. (M/Min)
24~91
