300 X 260mm Semi-Automatic Horizontal Column Type Band Saw
Have one to sell?
ConditionNew
New
Semi-Automatic Bandsaws (Dual Column)
Incorporating three linear guideways on saw frame travel and a gantry design supported by two rigid posts, Cosen 300 x 260 mm Semi-Automatic Horizontal Column Type Band Saw presents far better cutting stability and performance compared with competition in the same 260 mm round semi-automatic range. Its guide arm automatically positions itself closest possible to workpiece, saving you time making adjustments and preventing operator errors.
Standard Features

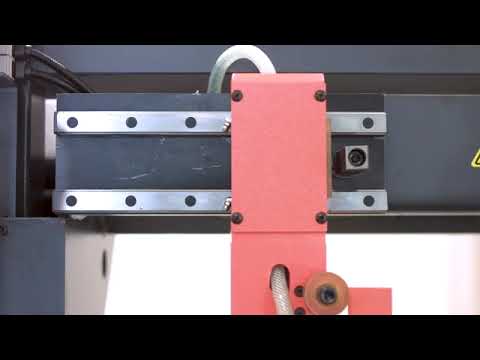

• High precision linear guideway design.
• Gearbox designed to accept high lateral pressure (no thermal distortion).
• Variable blade speed drive.
• Automatic positioning cast-iron guide arms.
• Carbide blade guides and bearings provides additional blade support.
• Motor driven, synchronized wire blade brush.
• Adjustable flood coolant system.
• Automatic hydraulic blade tensioning device.
• Cast-iron hydraulic vise.
• Split vise jaw for reduced burr.
• Take-in roller.
• Dual valve feed pressure and feed rate system for optimal cutting performance.
• Blade speed display.
• Work light.
Optional Accessories
• Hydraulic Chip Conveyor
• Vise Pressure Regulator
• Hydraulic Top Clamp
• 1M / 2M Roller Table
Type Of Saw
Horizontal
Automation
Semi-Automatic
Miter
NO
Production Line
Horizontal-Column
Capacity-Max. Height (Mm)
≦260
Capacity-Max. Width/Throat (Mm)
≦300
Capacity-Round (Mm)
260
Top Clamp-Min.~Max. Height (Mm)
70~140
Blade / Circular Saw Width (Mm)
34
Blade Speed Min.~Max. (M/Min)
15~80
