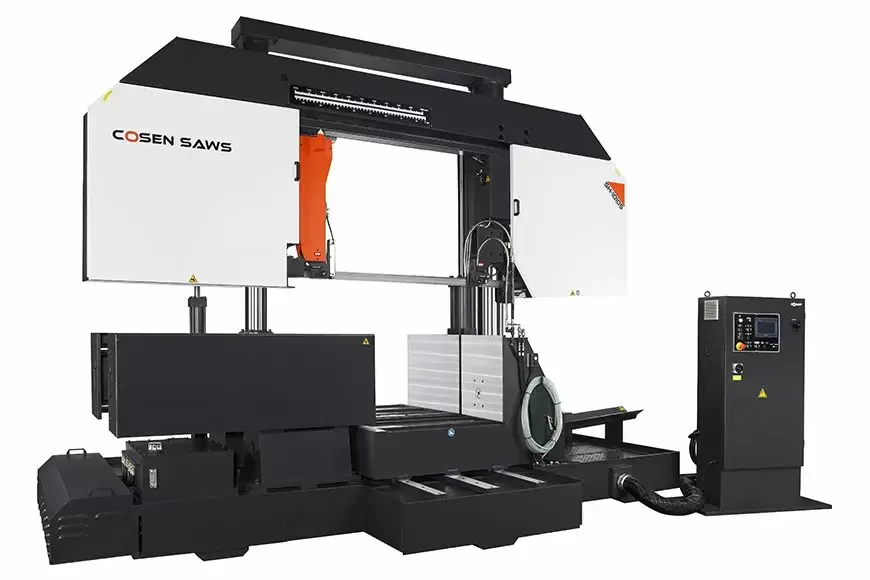

Cosen offers a comprehensive collection of semi-automatic bandsaws, each designed to meet a diverse array of cutting needs with varying capacities. These bandsaws surpass the conventional expectations and standards operators usually seek in such machinery. This semi-automatic bandsaw is engineered with a sturdy build and enhanced with superior features, this model aligns perfectly with Cosen's commitment to quality. The heavy-duty bandsaw is distinguished by its hydraulic dual column design, which contributes to its precision, operational efficiency, and cost-effectiveness per cut.
Standard Features
• Hydraulic dual column design.
• Gearbox designed to accept high lateral pressure (no thermal distortion).
• Inverter blade drive system which allows infinitely variable blade speeds.
• Adjustable flood coolant system.
• Motor driven, synchronized wire blade brush.
• Carbide blade guides and bearings provides additional blade support.
• Hydraulically actuated cast-iron guide arms.
• Cast-iron hydraulic front and rear vises.
• Split vise jaw for reduced burr.
• Automatic hydraulic blade tensioning device.
• Precision feed pressure control valve for optimal performance.
Type Of Saw
Horizontal
Automation
Semi-Automatic
Miter
NO
Production Line
Horizontal-Column
Capacity-Max. Height (Mm)
≦1000
Capacity-Max. Width/Throat (Mm)
≦1000
Capacity-Round (Mm)
1000
Blade / Circular Saw Width (Mm)
67
Blade Speed Min.~Max. (M/Min)
17~89
