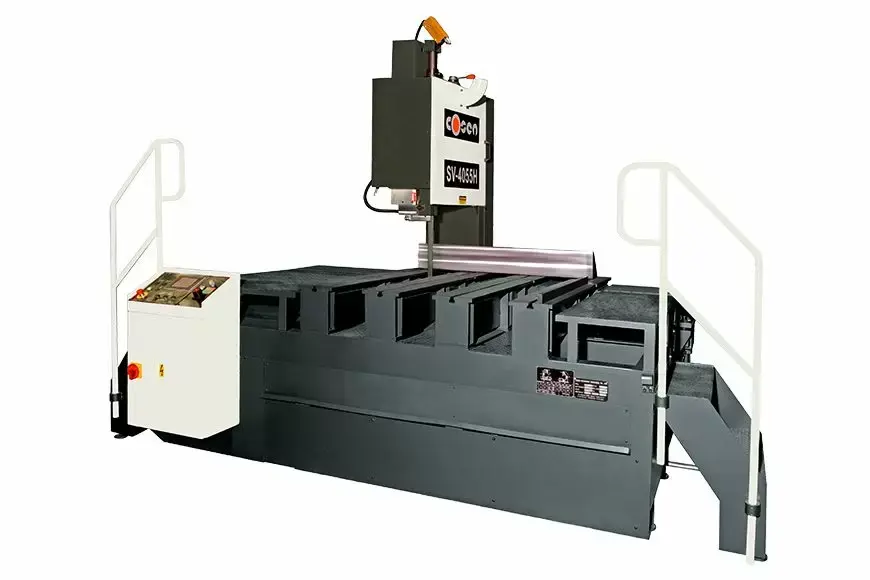

400mm X 550mm Traveling Head Vertical Plate & Block Band Saw Machine

Description

Band Saw Machine

400mm x 550mm Vertical Table Moving Vertical Plate & Block Band Saw Machine are available in various sizes of throat and bed length. Cosen plate saws offer many advantages over our competition with minimum floor space usage through traveling head design and blade deviation monitor. The biggest advantages that Cosen Plate Sawing Systems offer: quality, precision, fast cutting rates, and affordable price.

Standard Features

• Blade Actuation: The power source for the saw blade comes from a 10HP motor with a high-precision Reducer. Meanwhile, using a highly efficient inverter controls blade speed. These specially built mechanisms are combined to offer an extensive speed range, which is easily adjustable on the control panel.
• Cutting Pressure: Precision feeding valve design will achieve optimal cutting performance, based on the simple setting of feed rate and pre-selective cutting pressure for different materials.
• Inverter-Controlled Blade Speed: Use inverter to control the 10 HP blade motor so that the blade speed can be adjusted from 341 - 1310 m/min steplessly to match the required cutting speeds.
• Widened Double Track: The saw frame is riding on a Widened Double Track. This design gives the saw frame a rigid base to ensure the smoothest feeding proceed.
• Robust Machine Structure: The machine structure is designed under the rugged consideration to allow the heavier cutting load and larger cutting capacity when compared to other brands.
• Hydraulic Blade Tensio: Use the hydraulic controlled device to easily adjust the blade tension. In addition, the blade tension can be released to a slacken condition to avoid elastic fatigue when the machine is not in use.
• Saw Frame Travel: The SV-4055H uses a Hydraulic cylinder provides smooth, pulse free, feeding speed for rapid travel.
• Last Cut Function: Automatically stops the machine and shuts down the hydraulic system at the end of the last cut.
• Powered Chip Brush and Extra Coolant Nozzle: Blade is 100% cleansed to be free of chips via rotating double brush and coolant stream.
• Robust Machine Structure: The workbed is able to load the full capacity cutting; its strong frame shows remarkable power of endurance of the impact.
