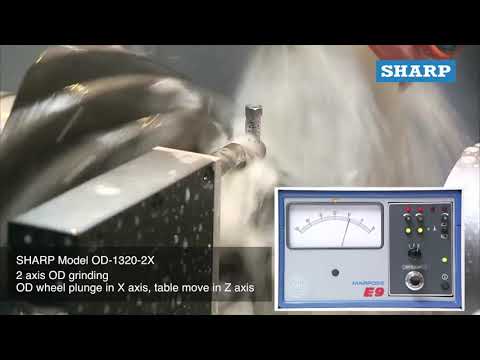

SHARP OD-1320-2X 2-AXIS CNC ANGULAR OD GRINDER
Have one to sell?
ConditionNew
New
The 2-axis CNC cylindrical grinder allows versatile functions for OD grinding. Besides grinding outside diameter, shoulder and faces in one set up, it can also address complex form grindings such as tapers and radii using form dressed wheels or profiling.
• FANUC Oi-TF CNC control
• Max grinding diameter 12.6” (Model OD-1320-2X)
• Max grinding diameter 15” (model OD-1524-2X)
• Distance bet centers 20” (Model OD-1320-2X)
• Distance bet centers 24” (Model OD-1524-2X)
• Wheelhead rotates on BABBIT bearings, a combination of hydrostatic and hydrodynamic bearings surrounded by high pressure oil film eliminating metal to metal contact thus providing vibration dampening.
• Table moves on hydrodynamic slideways that makes table movement smooth and stable
• X axis is equipped with linear scale with 0.00001” resolution for high precision movement
• Grinding wheel has constant surface speed function
CAPACITY
Swing over Table 12.6 in. (320 mm)
Distance Between Centers 19.7 in. (500.38 mm)
Max Grinding Diameter 12 in. (304.8 mm)
Max Load Between Centers 330 lbs. (163 kg)
Wheelhead OD-1320-2X
Infeed Range 9 in. (228.6 mm)
Minimum Increment Feed 0.0001 in. dia. (0.00254 mm)
Max Increment Speed 236 in. dia. (5994 mm)
Swivel Angle 90 degrees
GRINDING WHEEL
OD X Width x ID 20 x 2 x 6 in. (508 x 50.8 x 152.4 mm)
Optional Width 4 in. (101.6 mm)
Wheel Speed 1390 rpm
WORKHEAD
Spindle Type Fixed & Rotary
Spindle Speed (variable) 30-350 rpm
Diameter of Through Hole 0.9 in. (22.86 mm)
Taper of Center MT #4 (option 5)
TABLE
Rapid Feed 393 ipm (9982 mm/min)
Swivel Angle CCW 9 degrees
Min incremental feed 0.0001 in. (0.00254 mm)
TAILSTOCK
Spindle Stroke 1 in. (25.4 mm)
Center Taper MT #4 (option 5)
MOTORS
Wheel Drive 7.5 HP, 10HP (5.59 Kw, 7.45 Kw)
Workhead Drive 2 HP (1.49 Kw)
Hydraulic Pump Drive 2 HP (1.49 Kw)
Coolant Pump 0.25 HP (0.18 Kw)
Lub Pump 0.25 HP (0.18 Kw)
X/Y axis motor 1.6 HP (1.19 Kw)
TANK CAPACITY
Coolant Tank 20 gallons (75.70 L)
Hydraulic Tank 15 gallons (56.78 L)
MEASUREMENTS
Width x Depth 13.91 x 7.5 ft. (4.23 x 2.28 M)
Height 7.41 ft. (2.25 M)
Approx. Weight (Net) 11,440 lbs. (5189 kg)
