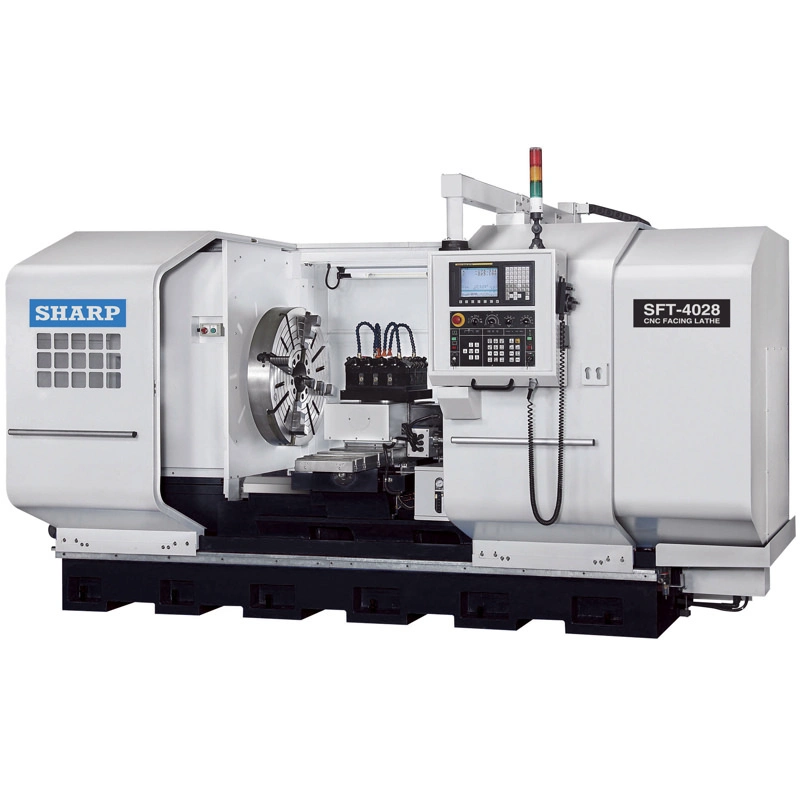

SHARP STF-60
Have one to sell?
ConditionNew
New
The extra heavy duty big bore T-lathe (Facing Lathe) has a swing of 60” and spindle bores of 6”, 9”, 10″, 12”, and 15” diameter. It has no tailstock. The center distance is 40” The machine bed is 32” wide. It is designed specifically for large diameter but short length work pieces.
• Swing over bedways: 60”
• Distance between centers: 40″
• Spindle bore: 6″ standard, 9″, 10″, 12″, 15″ optional
• Spindle motor: 30 hp, (40 & 50 hp, optional)
• Bed width: 32″
• It has no tailstock
• M code 4 step auto change speeds
CAPACITY
Maximum Swing Over Bed 59.84 in.
Swing Over Cross Slide 39.37 in.
Spindal Bore
- 6 in.
- 9 in.
- 10 in
- 12 in.
- 15 in.
Main Motor 30 hp (Std.), 40 hp & 50 hp (Opt.)
CNC Control FANUC Oi-TF
BED
Bed Way Construction 2 V, 2 Flat Ways
Width of Bed 31.88 in.
Length of Bed 128.54 in.
TRAVEL
X-Axis Travel (Varies by different turrets installed) 25.59 in.
Z-Axis Travel 39.37 in.
X-Axis Ball Screw Diameter 1.57 in.
Z-Axis Ball Screw Diameter 2.48 in.
MOTOR
Spindle Motor 30 hp (STD Fanuc Alpha 22), Opt: 40 hp or 50 hp
X-Axis Servo Motor 5.3 hp (Fanuc AC servo)
Z-Axis Servo Motor 5.3 hp (Fanuc AC servo)
Hydraulic Pump 2 hp
Coolant Pump 1.7 hp
MACHINE WEIGHT
Weight 23,100 lbs.
DIMENSIONS
Length (Length without Chip Conveyor) 166.54 in.
Width 102.76 in.
Height 91.14 in.
