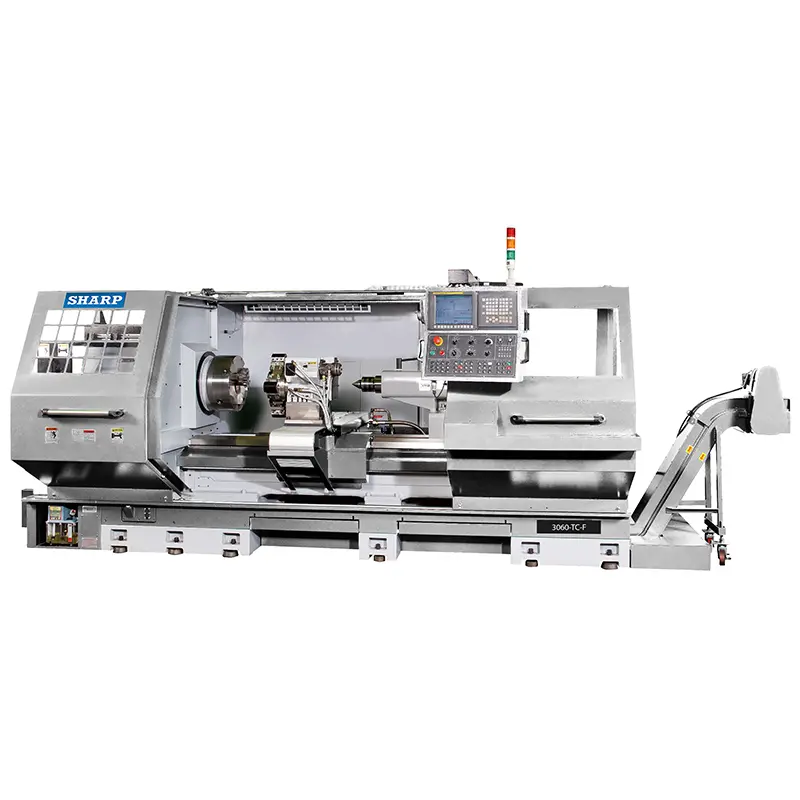

SHARP 30160TC-F CNC PRECISION LATHES (FLAT BED)
CNC Lathes
This is a user friendly CNC lathe with full CNC functions and manual operation functions. It has programmable spindle speed, and 4- way tool post positioning. The Electronic handwheel (MPG) can be used for manual operation.
• FANUC Oi-TF CNC , 10.4” LCD screen
• 30” swing, 159” between centers (30160 Oi-TF)
• A2-11 , 6.7” spindle bore,
• 20 HP motor
• 2 steps gear speed change (10-1,000 rpm)
• programmable spindle speed
• Electronic Handwheel (MPG)
• 8 positions hydraulic turret ( 4 internal, 4 external)
• Auto lube system
CAPACITY
Swing Over Bed 29.92 in.
Swing Over Cross Slide 19 in.
Turing diameter (in front of cross slide with 8-station turret turning tool) : 22 in.
Distance between centers 157 in.
Width of Bed 18 in.
Length of Bed 216.5 in.
Center height 15 in.
Bed Casting Height 15.75 in.
Bed way one flat and V
Bed way of cross slide Dovetail slide way
HEADSTOCK
Spindle bore 6.7 in.
Spindle nose A2-11
Range of spindle speed 10-1,000 rpm
No. of spindle speed 2 steps/ auto selected gear ranges
TRAVEL
X-axis cross slide travel 19.68 in.
Z-axis travel longitudinal travel 157.5 in.
X-axis ball screw diameter 1.25 in.
Z-axis ball screw diameter: 1.96 in.
FEED
X/Z-axis rapid feed 1,394 ipm
X/Z-axis cutting feed rate 118.11 ipm
Turret Hydraulic 8 position turret LS 200 with 4 X internal tool holder and 4 X external tool wedges
Tool shank/Number 1 x 1 in.
Boring bar diameter 1.5 in.
TAILSTOCK
Quill diameter 5 in.
Quill travel 7.87 in.
Taper of center MT6
MOTOR
Spindle motor 20 HP
X-axis servo motor 2 HP
Z-axis servo motor 4 HP
Hydraulic Pump motor 2 HP
Coolant pump 0.75 HP
Power consumption 28 KVA
DIMENSIONS
Net Weight 18,920 lbs.
Machine dimensions 21.97 x 6.56 x 5.91 ft.
