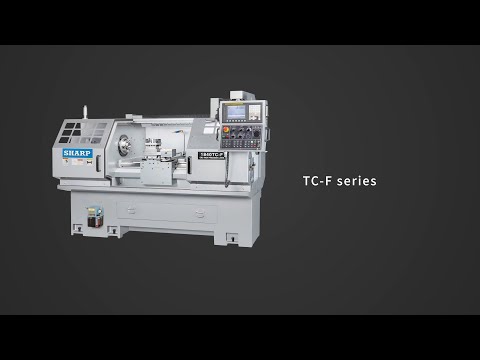

SHARP 2460TC-F CNC PRECISION LATHES (FLAT BED)
Have one to sell?
ConditionNew
New
This is a user friendly CNC lathe with full CNC functions and manual operation functions. It has programmable spindle speed, and 4- way tool post positioning. The Electronic handwheel (MPG) can be used for manual operation.
• FANUC Oi-TF CNC , 8.4” LCD screen
• 24” swing, 59” between centers
• D1-8 camlock, 4.09” spindle bore,
• 15 HP motor
• 2 steps gear speed change (30-1,600 rpm)
• programmable spindle speed
• Electronic Handwheel (MPG)
• 4- way programmable tool post
• Auto lube system
CAPACITY
Swing Over Bed 24 in.
Swing Over Cross Slide 14.5 in.
Distance Between Centers 59 in.
HEADSTOCK
Spindle Speed 43-250 rpm
Spindle Nose D1-6 camlock
Spindle Bore 4.09 in.
CARRIAGE
Cross Slide Travel 10.63 in.
BED
Bed Length 102.2 in.
Bed Width 14.5 in.
TAILSTOCK
Quill Diameter 2.93 in.
Quill Travel 6.31 in.
Quill Center Taper MT #5
GENERAL
Spindle Motor Fanuc 15 HP
Approximate Weight 8,820 lbs.
Dimensions 10.66 x 6.25 x 7.16 ft.
