New SHARP TMV-1-MP-3 | Vertical Mills
Have one to sell?
ConditionNew
New

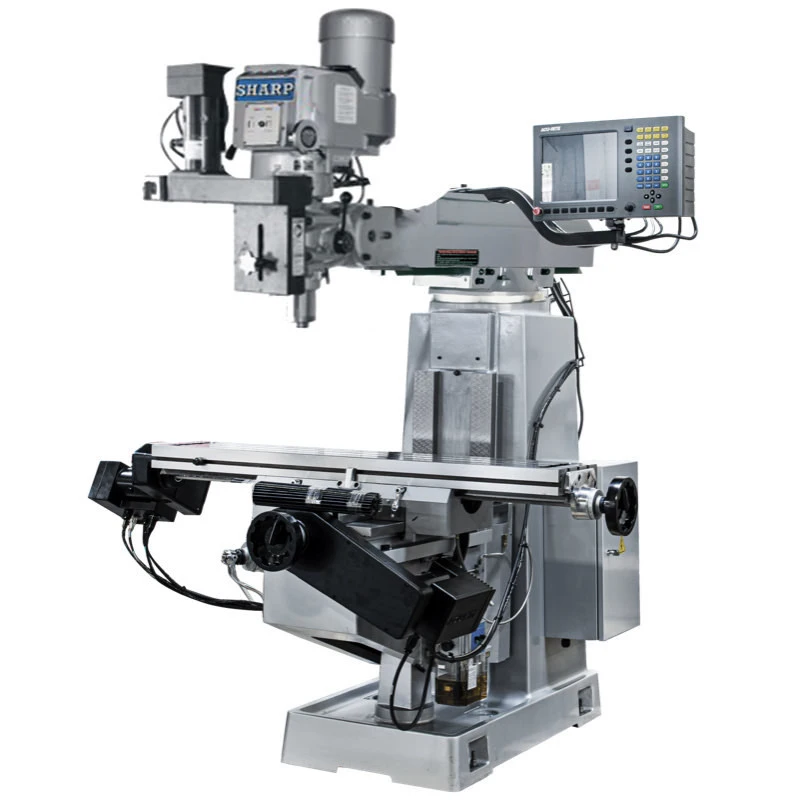

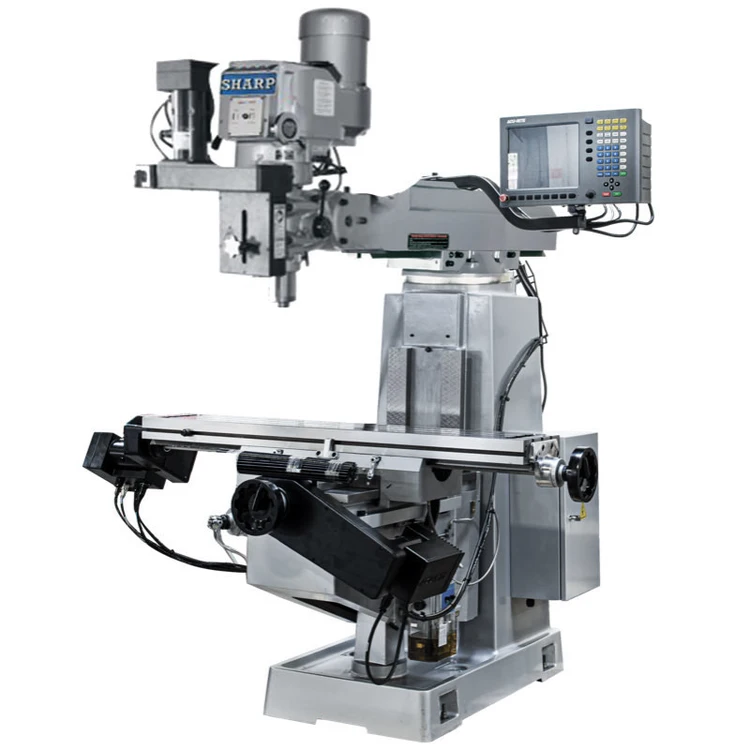

This is a simple, easy to use 3 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming . The CNC system is built on the top quality SHARP vertical mills frame.
- 10 x 54” table, 15.5 x 31 x 5” travel, vari speed, 5 HP, #40 spindle
- AcuRite Millpwr G2 CNC 3 axes control (Longitudinal, Cross)
- G code and conversational type programming
- 3 axes precision ball screws
- Safety handwheels
- Auto lube system
- 3 axes Digital Readout System (table, saddle, quill)
CAPACITY
Table Size 10 x 50 in.
T-slots (No., Size, Pitch) 3, 5/8, 2.5 in.
Table Travel : X Longitudinal 31 in.
Table travel : Y Cross 15.5 in.
Quill travel: Z Vertical 5 in.
Ram Travel 18.5 in.
Knee travel : Vertical 15.3 in.
Spindle Center to Column 9.8 - 28.3 in.
Spindle Nose to Table Top 1.6 - 16.9 in.
HEAD, SPINDLE
Spindle Nose Taper NT-40
Spindle Variable Speed Range 60 - 4500 rpm
Spindle Motor (220V/440V) 5 HP
Quill Feed (Inch/Rev)(3 speeds) 0.0015, 0.003, 0.005 in.
Head Tilt Angle (L/R) 90°
Head Tilt Angle (Up/Down) 45°
GENERAL INCH
Floor Area (W x D x H) 7.08 x 6.66 x 7.5 ft.
Approximate Weight 3750 lbs.
Power Consumption (220V) 3 KVA/15 amps
Power Consumption (440V) 3 KVA/7.5 amps
