New SHARP LMV-49-DVS-MP-3 | Vertical Mills
Have one to sell?
ConditionNew
New

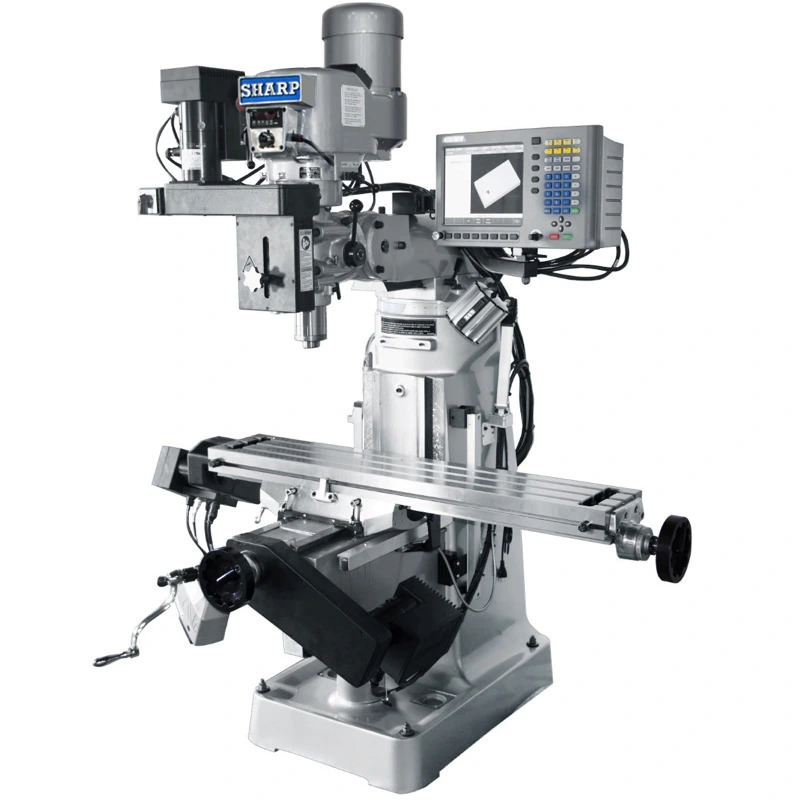

This is a simple, easy to use3 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming. The CNC system is built on the top quality SHARP vertical mills frame.
- 9 x 49” table, 11 x 31 x 5” travel, Digital Vari speed
- AcuRite Millpwr G2 CNC3 axes control (Longitudinal, Cross)
- G code and conversational type programming
- 3 axes precision ball screws
- Safety handwheels
- Auto lube system
- 3 axes Digital Readout System (table, saddle, quill)
CAPACITY
Table Size 9 x 49 in.
T-slots (No., Size, Pitch) 3, 5/8, 2.5 in.
Table Travel : X Longitudinal 31 in.
Table travel : Y Cross 11 in.
Quill travel: Z Vertical 5 in.
Ram Travel 12 in.
Knee travel : Vertical 16 in.
Spindle Center to Column 6.75-18.5 in.
Spindle Nose to Table Top 2.12-18 in.
HEAD, SPINDLE
Spindle Nose Taper R-8
Spindle Variable Speed Range 60 - 4,500 rpm
Spindle Motor (220V/440V) 3 HP (2.25 KW)
Quill Feed (Inch/Rev)(3 speeds) 0.0015, 0.003, 0.006 in.
Head Tilt Angle (L/R) 45°
Head Tilt Angle (Up/Down) 45°
GENERAL
Floor Area (W x D x H) 7 x 6.5 x 7 ft.
Approximate Weight 2700 lbs.
Power Consumption (220V) 3 KVA/15 amps
Power Consumption (440V) 3 KVA/7.5 amps
