New SHARP TMV-DVS-MP-2 | Vertical Mills
Have one to sell?
ConditionNew
New

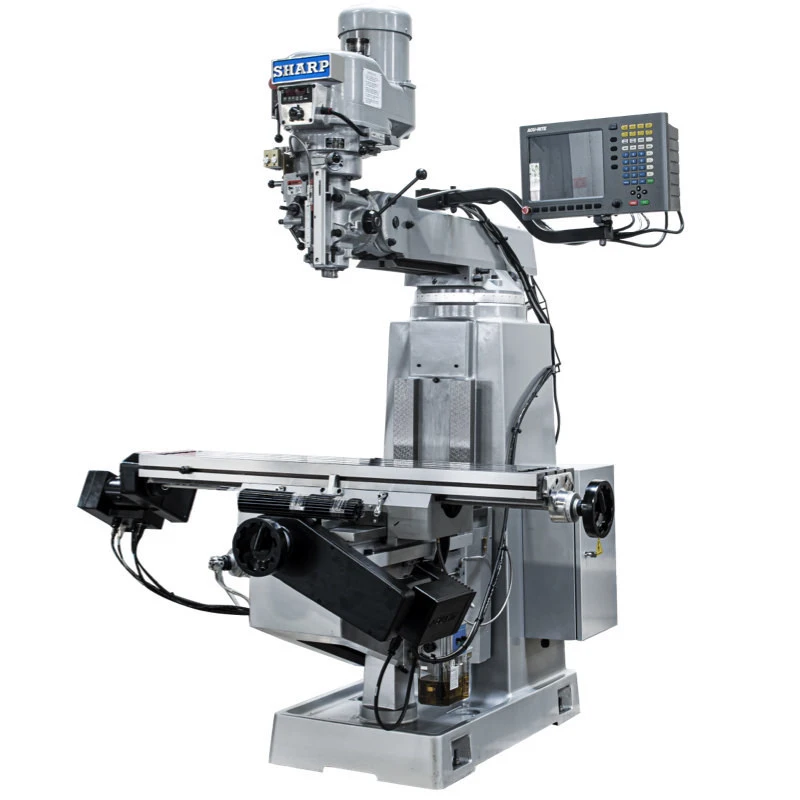

This is a simple, easy to use 2 axis CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axis Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming. The CNC system is built on the top quality SHARP vertical mills frame.
- 10 x 54” table, 15.5 x 31x 5” travel, Digital Vari Speed 3 HP, R-8 spindle
- AcuRite Millpwr G2 CNC 2 axes control (Longitudinal, Cross)
- G code and conversational type programming
- 2 axes precision ball screws
- Safety handwheels
- Auto lube system
- 3 axes Digital Readout System (table, saddle, quill)
CAPACITY
Table Size 10 x 50 in.
T-slots (No., Size, Pitch) 3 x 0.625 x 2.5 in.
Table Travel : X Longitudinal 31 in.
Table travel : Y Cross 15.5 in.
Quill travel: Z Vertical 5 in.
Ram Travel 18.5 in.
Knee travel : Vertical 15.3 in.
Spindle Center to Column 9.8-28.3 in.
Spindle Nose to Table Top 1.6-16.9 in.
HEAD, SPINDLE
Spindle Nose Taper R-8
Spindle Variable Speed Range 60~4500 rpm Digital Variable Speed
Spindle Motor (220V/440V) 3HP
Quill Feed (Inch/Rev)(3 speeds) 0.0015/0.003/0.006 in.
Quill Diameter 3.5 in.
Head Tilt Angle (L/R) 90°
Head Tilt Angle (Up/Down) 45°
GENERAL
Floor Area (W x D x H) 7.08 x 6.66 ft.
Approximate Weight 2,860 lbs.
Power Consumption (220V) 3 KVA/15 amps
Power Consumption (440V) 3 KVA/7.5 amps
