New SHARP LMV-49-DVS-MP-2 | Vertical Mills
Have one to sell?
ConditionNew
New

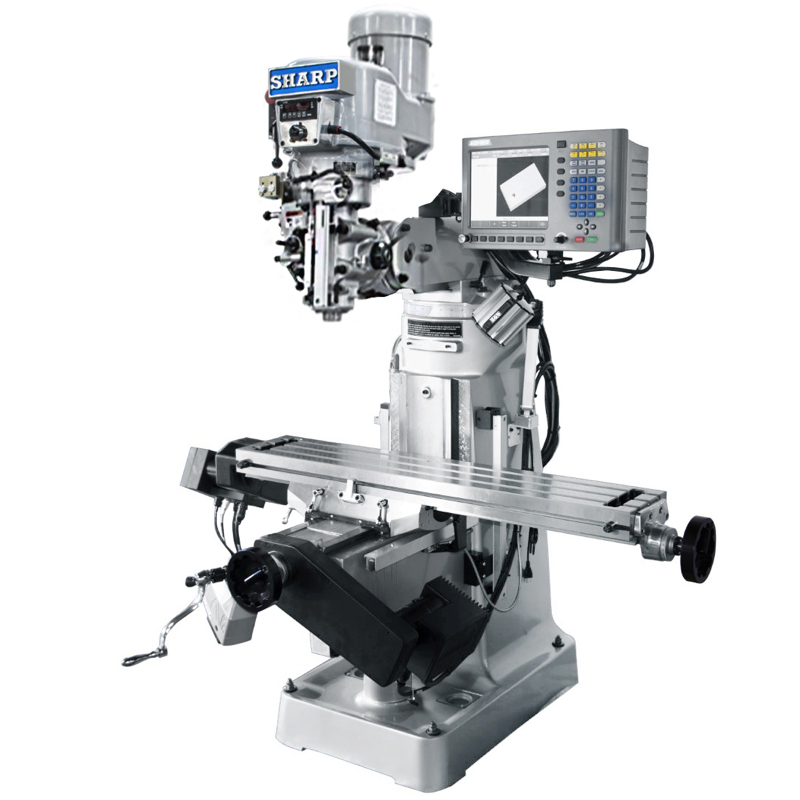

This is a simple, easy to use 2 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming . The CNC system is built on the top quality SHARP vertical mills frame.
- 9 x 49” table, 11 x 31 x 5” travel, Digital Variable Speed
- AcuRite Millpwr G2 CNC 2 axes control (Longitudinal, Cross)
- G code and conversational type programming
- 2 axes precision ball screws
- Safety handwheels
- Auto lube system
- 3 axes Digital Readout System (table, saddle, quill)
CAPACITY
Table Size 9 x 49 in.
T-slots (No., Size, Pitch) 3, 5/8, 2.5 in.
Table Travel : X Longitudinal 31 in.
Table travel : Y Cross 11 in.
Quill travel: Z Vertical 5 in.
Ram Travel 12 in.
Knee travel : Vertical 16 in.
Spindle Center to Column 6.75 - 18.5 in.
Spindle Nose to Table Top 2.125 - 18 in.
HEAD, SPINDLE
Spindle Nose Taper R-8
Spindle Variable Speed Range 60 - 4500 rpm
Spindle Motor (220V/440V) 3 HP
Quill Feed (Inch/Rev)(3 speeds) .0015, .003, .006 in.
Quill Diameter 3.375 in.
Head Swivel Angle 360°
Head Tilt Angle (L/R) 45°
Head Tilt Angle (Up/Down) 45°
GENERAL
Floor Area (W x D x H) 7 x 6.6 x 6.7 ft.
Approximate Weight 2,200 lbs.
Power Consumption (220V) 3 KVA/15 amps
Power Consumption (440V) 3 KVA/7.5 amps
