SHARP KMA-1H-CNC-SERIES VERTICAL / HORIZONTAL SPINDLES
Have one to sell?
ConditionNew
New

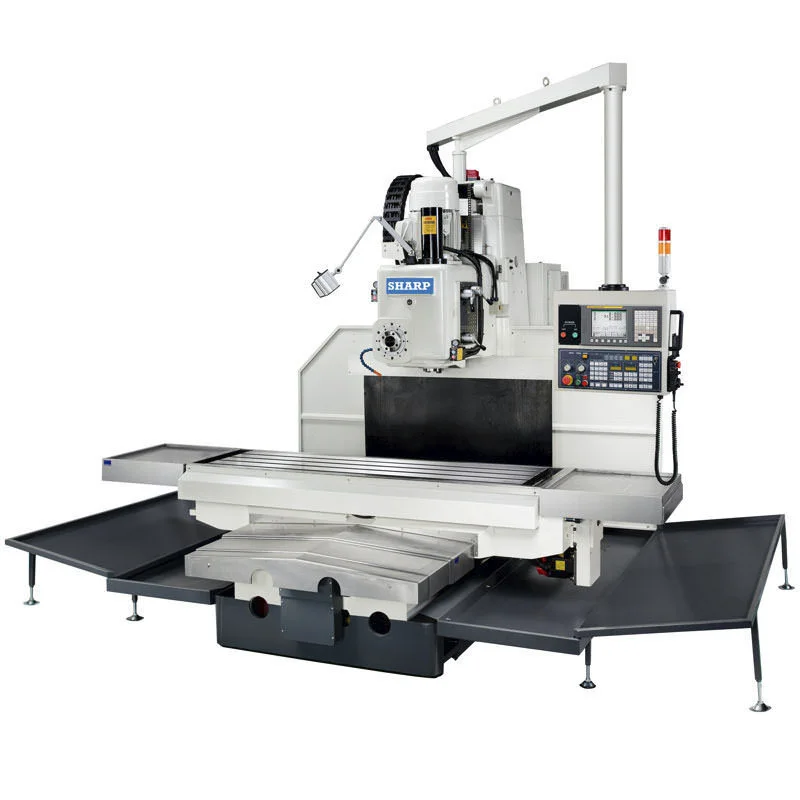

The Sharp KMA-1H-CNC series machines has 2 spindles (Vertical and Horizontal) for easy, simple, hard metal removal. The horizontal spindle allows 5-sided machining when installed with the optional indexable, or rotary table. There is no Automatic Tool Change (ATC).
- KMA-1H-CNC : 19.7″ x 74.8″ table, 33.5″ x 51.2″ travel, #50 taper (2)
- Fanuc OiMF control and AC servo drives
- 3 axes electronic handwheel ( MPG)
- Hardened and grounded slideways with Turcite coating
- 18 speeds spindlea with NT50 taper
- Pneumatic locks on the table and saddle for heavy cutting
- Power draw bar
- Coolant System
- Electro Magnetic spindle brake
CAPACITY
X axis travel 51.2 in.
Y axis travel 33.5 in.
Z axis travel 30.7 in.
Spindle nose to table 0-22.9 in.
Spindle center to column 18.9 in.
TABLE
Table area 74.8 x 19.7 in.
Floor to table 32.25 in.
Max. workpiece weight 3500 lbs.
T-Slot (Number x Width x Pitch) 5 x 0.7 x 3.15 in.
SPINDLE
Spindle taper NT50
Spindle speed 45-1500 rpm 18 steps
Spindle motor 4 HP, 10HP
Spindle motor model 10HP
Spindle bearing ID 3.54 in.(Front) / 3.35 in. (Rear)
FEEDS
Rapid traverse 30-6000 rpm
Cutting feed rate 30-6000 rpm
Ball screw diameter / pitch: X/Y/Z 114.3 / ø35
Feed motor - Fanuc: X/Y/Z B22i / 3K (X / Y / Z)
Positioning accuracy* 0.00039 in.
Repeatability accuracy* 0.000236 in.
MOTION
Type (all axis) Dovetail guide way with turcite B (X-axis)
Square guide way with turcite B (Y&Z axis)
Way size / spacing (X axis) 2.33+3.07 in. / 16.54 in.
Way max size / spacing (Y axis) 4.72+4.72 in. / 28.35 in.
Way size / spacing (Z axis) 3.94+3.94 in. / 15.75 in.
COOLANT SYSTEM
Coolant tank capacity 3 Liters
Flood coolant pressure 80W
MACHINE SIZE
Floor space 168.5 x 148.82 x 117.32 in.
Height 117.32 in.
Weight 12,125 lbs.
POWER REQUIREMENTS
Electrical 25 KVA
Air 6-8kg/cm2
