SHARP KMA-3-CNC-SERIES VERTICAL SPINDLE
Have one to sell?
ConditionNew
New

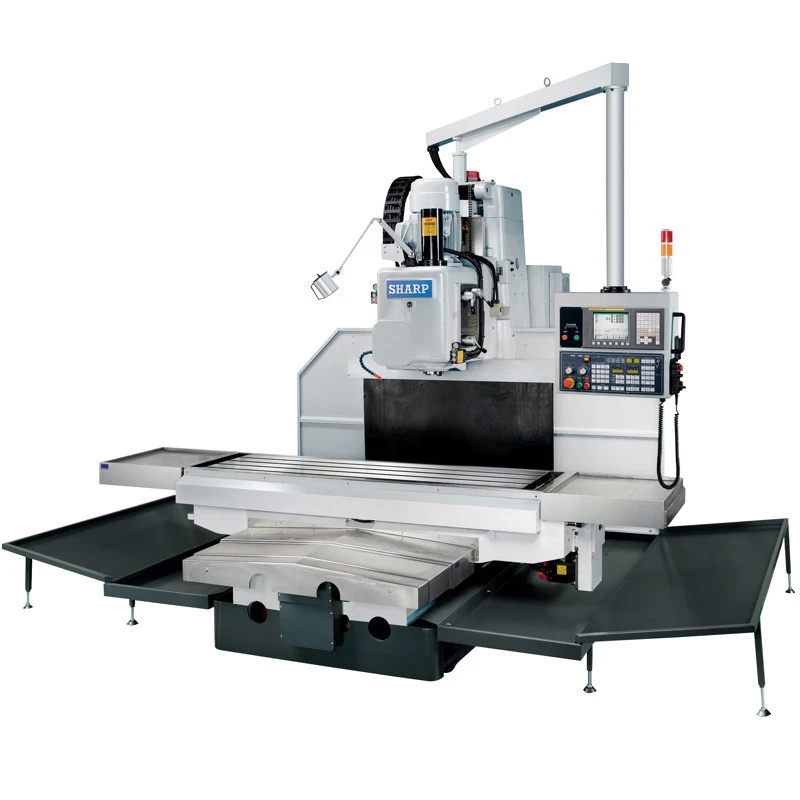

The Sharp KMA-3-CNC series Bed Type Vertical Milling Machine was engineered for easy, simple, hard metal removal. This is an extremely rigid “C” frame design using hardened and ground box ways and 18 speeds gear head spindle to do the cutting. There is no Automatic Tool Change (ATC). This series has 3 sizes equipped with 15 HP motor, 1,500 rpm, CAT 50 spindle.
- KMA-3-CNC : 23.6” x 86.6” table, 31” x 66.9” travel, #50 taper, 15 HP motor
- Fanuc OiMF control and AC servo drives
- 3 axes electronic handwheel ( MPG)
- Hardened and grounded slideways with Turcite coating
- 18 speeds spindle with NT # 50 taper spindle
- Pneumatic locks on the table and saddle for heavy cutting
- Power draw bar
- Coolant System
- Electro Magnetic spindle brake
CAPACITY
Table Travel (X) 66.9 in.
Table Travel (Y) 31.5 in.
Spindle Head Travel (Z) 23.6 in.
X/Y Cutting Range 66.9/30.7 in.
Cutting Height 27.5 in.
Spindle Nose to Table Top 5.9 - 29.5 in.
Spindle Center to Column 33.4 in.
TABLE
Table Working Area 86.6 x 23.6 in.
T-Slot (No. x W x Pitch) 5 x 0.78 x 4.9 in.
Table Top to Floor 33.66 in.
Max Loading 4,400 lbs
SPINDLE HEAD
Spindle Nose No. 50
Spindle Speeds (Hi-Low) 45-1500 rpm
FEEDS
Rapid Traverse (X. Y) 1.2-236 ipm
Feeds (X, Y) 1.2-236 ipm
MOTORS
Spindle 15 HP
X/Y/Z axis 4 HP
For Lubrication 0.25 HP
For Coolant Pump 0.25 HP
MACHINE SIZE
Machine Height 125.2 in.
Floor Space (X, Y) 204 x 160.6 in.
Net Weight 16,500 lbs.
Gross Weight 19,000 lbs.
TOTAL POWER CONSUMPTIONS
Total Power Consumptions 25 KVA
