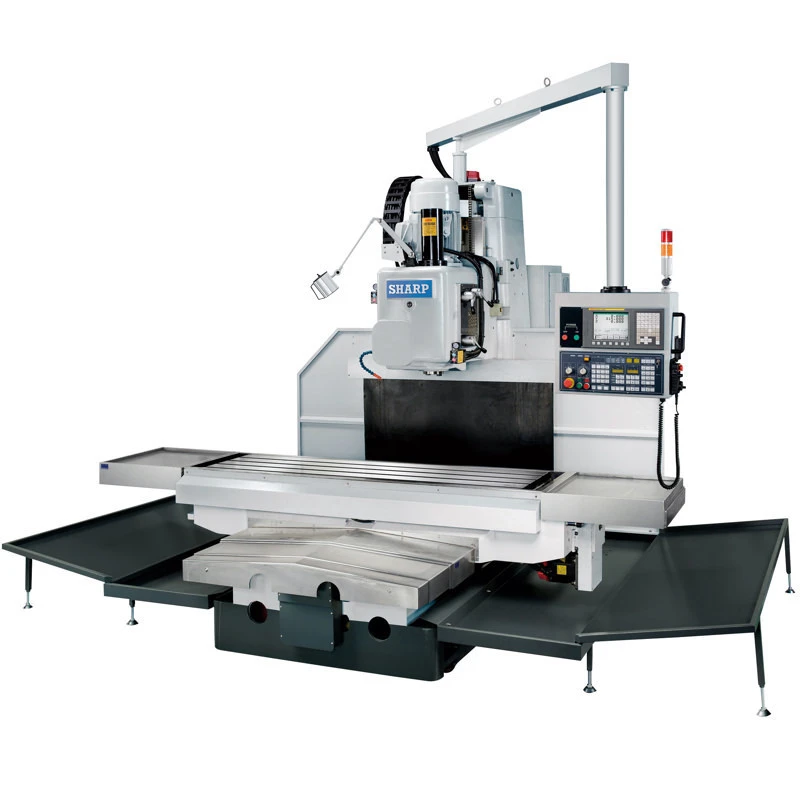

SHARP KMA-1-CNC-SERIES VERTICAL SPINDLES
Have one to sell?
ConditionNew
New
The Sharp KMA-1-CNC series was engineered for easy, simple, hard metal removal. This is an extremely rigid “C” frame design using hardened and ground box ways and 18 speeds gear head spindle to do the cutting. There is no Automatic Tool Change (ATC). This series has 3 sizes equipped with a 10 HP motor, 1,500 rpm, CAT 50 spindle.
- KMA-1-CNC: 19.7” x 74.8” table, 22” x 51.2” travel, #50 taper, 10 HP motor
- Fanuc OiMF control and AC servo drives
- 3 axes electronic handwheel ( MPG)
- Hardened and grounded slideways with Turcite coating
- 18 speeds spindle with # 50 taper
- Pneumatic locks on the table and saddle for heavy cutting
- Power draw bar
- Coolant System
- Electro Magnetic spindle brake
CAPACITY
Table Travel (X) 51.2 in.
Table Travel (Y) 22 in.
Spindle Head Travel (Z) 21.6 in.
X/Y Cutting Range 51.2/20.8 in.
Cutting Height 19.6 in.
Spindle Nose to Table Top 3.7-25.4 in.
Spindle Center to Column 22.8 in.
TABLE
Table Working Area 74.8 x 19.7 in.
T-Slot (No. x W x Pitch) 5 x 0.07 x 3.15 in.
Table Top to Floor 32.28 in.
Max Loading 3,500 lbs.
SPINDLE HEAD
Spindle Nose No. 50
Spindle Speeds (Hi-Low) 45-1500 rpm
FEEDS
Rapid Traverse (X. Y) 1.2-236 ipm
Feeds (X, Y) 1.2-236 ipm
MOTORS
Spindle 10 HP
X/Y/Z axis 3.3 HP
For Lubrication 0.25 HP
For Coolant Pump 0.25 HP
MACHINE SIZE
Machine Height 117.3 in.
Floor Space (X, Y) 169.3 x 132 in.
Net Weight 11,440 lbs.
Gross Weight 13,200 lbs.
TOTAL POWER CONSUMPTIONS
Total Power Consumptions 25 KVA
