New SHARP SVX-300-F | Vertical Machining Centers (5-Axis or More)
Have one to sell?
ConditionNew
New

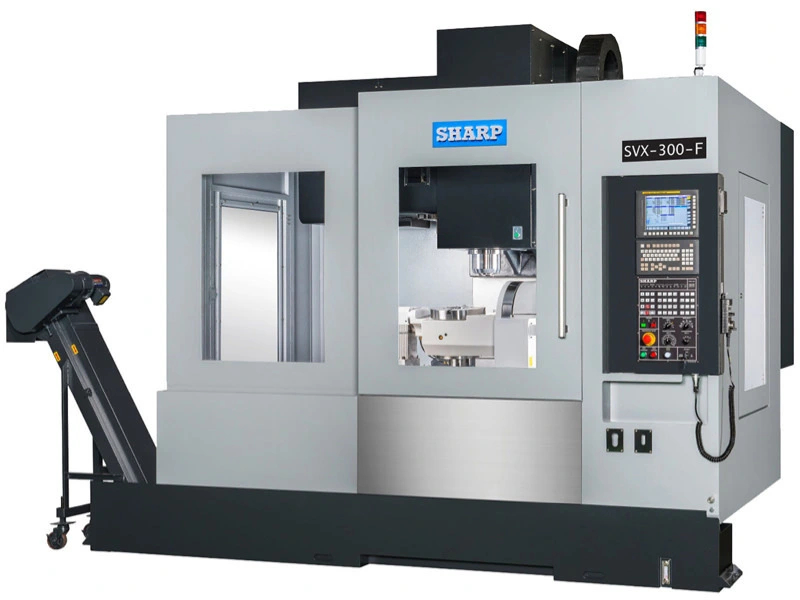

This is a 5 axis Linear Roller Guide C frame machining center with Roller Cam Bearing Trunnion Table. It can perform 5 sided (4+1 applications) and 5 axis simultaneous machining. The machine is designed for high speed, high precision and high productivity machining. It is ideal for aerospace, medical and mold making industries.
- FANUC 31iB5, 10.4” LCD color screen
- Travel: X/Y/Z: 30″/ 23.6″/ 19.7″
- Max Working Load : 330 Lbs
- Trunnion Table: A/C Diameter: 9.8″/ 11.8″, A/C Degree: -120 to + 30/ 360
- Roller Cam type trunnion table
- Spindle: 12K Rpm, CAT 40 Big Plus, Direct Driven, 15 HP Motor
- ATC: Side Mount 24 Tools
- Position Accuracy: X/Y/Z (+/- 0.0002″)
- Repeatability Accuracy: X/Y/Z (+/- 0.00012″)
- Machine Size: without Chip Conveyor: W/D/H (119″/ 91.73″/ 124.41″)
- A/C Axis Position Accuracy: +/- 15 Arc Sec
- A/C Axis Repeatability: 6 Arc Sec
- Coolant Nozzle: 2; Air Blow Nozzle: 1
- Coolant Tank Capacity: 42 Gal
- Electrical: 220V/ 3 phase / 35 KVA
WORK CAPACITY
X axis travel 29.92 in.
Y axis travel 23.62 in.
Z axis travel 19.69 in.
A axis travel (tilting) -120 to +30'
C axes travel (rotation) 360°
Spindle nose to table (A= 0°) 3.94 -23.62 in.
Spindle center to column 26.77 in.
TABLE AREA
Max Work Piece Weight 330 lbs.
T-Slot (No. x Width x degree) 4 x 0.55 x 90 degrees
Trunnion Table A axis: 9.84 in. / C axis: 11.8 in.
SPINDLE
Spindle taper ISO 7/24 40 Taper CAT Big plus
Spindle speed 12,000 ceramic bearing
Spindle motor: cont./30 min 10/15 hp
Spindle torque: 30 min rating 51 ft-lb. at 1500 rpm / 20 ft-lb at 4000 rpm
Transmission Direct Coupling
AUTOMATIC TOOL CHANGER
ATC type Side Mount
Tool capacity 24
Max. tool diameter 2.95 in.
Without adjacent tool 5.9 in.
Max. tool length 11.8 in.
Max. tool weight 15.4 lbs.
Method of tool selection Random
MOTION
Rapid traverse X/Y/Z: 1417.32 ipm
Cutting feed rate 393.7 ipm
Feed motor (Fanuc) X: 4 HP / Y/Z: 5 HP
X/Y/Z Positioning accuracy 0.0002 in.
X/Y/Z Repeatability accuracy 0.00012 in.
A/C axis position accuracy +/- arc sec 15
A/C axis repeatability accuracy +/- arc sec 6
Ballscrew diameter, X/Y/Z 1.57 in.
COOLANT SYSTEM
Coolant tank capacity 63.2 gal
Number of Flood Coolant Nozzles 2
MACHINE SIZE
Floor space (w/o chip conveyor) W: 118.1 in. x D: 91.7 in.
Height 124.4 in.
Weight 16,500 lbs.
Door opening 43.3 in.
POWER REQUIREMENTS
Electrical 220V / 60 Hz / 3 Phase / 35 KVA
Air 6 CFM at 88 psi
