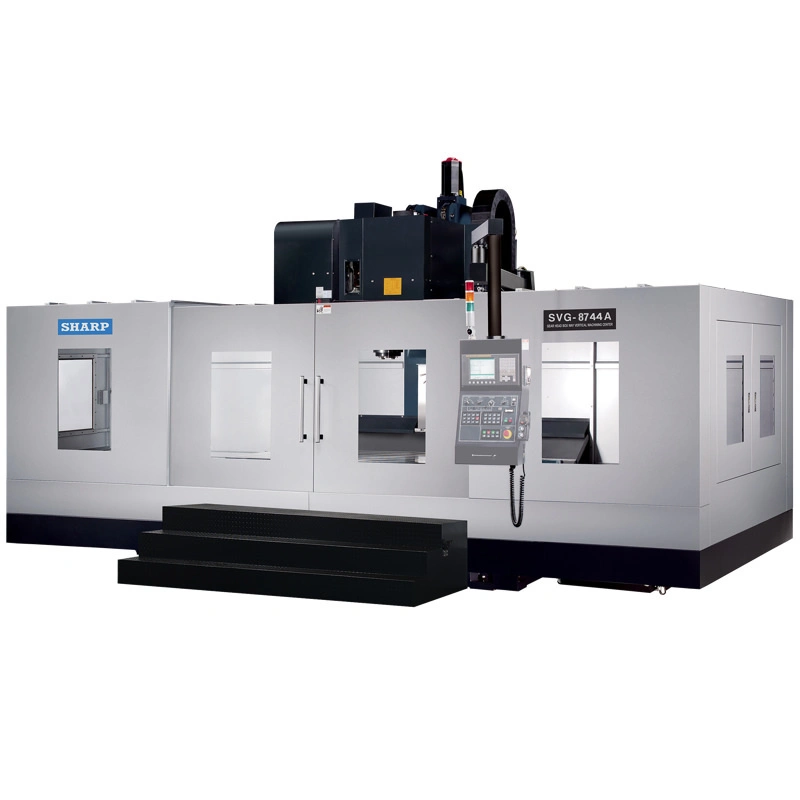

New SHARP SVG-8743A-F | Vertical Machining Centers
Have one to sell?
ConditionNew
New
The Sharp SVG series was engineered from the ground up for hard metal machining. This is a extremely rigid “C” frame design using 6 hardened and ground box ways. All structural components are made of Meehanite casting with internal ribs running throughout each section. Precision hand scraping of each section provides near perfect alignment assuring long term accuracy. The gearhead spindle is equipped with 35 HP motor, 6,000 rpm, CAT 50 spindle.
- FANUC Oi-MF, 10.4” LCD color screen
- Travel: X/Y/Z: 86″/ 43″/34″,
- ·Table :94″ x 35″
- 6 Box Ways (Hardened and Ground)
- Extra Heavy High Quality Casting Components
- Spindle: 6K rpm, CAT 50 Geared Head, 35 HP Motor
- ATC: Side mount 40 Tools
- Position Accuracy: X/Y/Z (0.0003″ within 12″)
- Repeatability : X/Y/Z (+/- 0.0002 within 12″)
WORK CAPACITY
X axis travel 86.61 in.
Y axis travel 43.31 in.
Z axis travel 35.43 in.
Spindle nose to table 9.45-44.88 in.
Spindle center to column 41.34 in.
WORKTABLE
Table area 94.49 x 39.37 in
Floor to table 43.5 in.
Max. workpiece weight 4410 lbs.
T-Slot (Number x Width x Pitch) 22 x 6T x 6.3 in.
SPINDLE
Spindle taper CAT 50
Spindle speed 6000 rpm
Spindle motor: cont./30 min 22/26 Kw
Spindle torque: 30 minutes 427 ft-lb(α22i / 6000rpm)
Spindle motor model α22i
Transmission 2 speed gear
Low / high ratio (1:3:5) / (1:1)
Spindle bearing ID 3.94 in.(Front) / 3.54 in.(Rear)
Spindle Lubrication Grease
Spindle cooling Chilled Oil
Tool clamp force 1800 kgf
AUTOMATIC TOOL CHANGER
ATC type Side Mount
Tool capacity 40T
Max. tool diameter ø5 in.
Without adjacent tool ø9.84 in.
Max. tool length 11.81 in.
Max. tool weight 33 lbs.
Tool change time (tool to tool) 4.39 sec.(cam-box-only)
Method of tool selection Bi-direction Random
MOTION
Rapid traverse 472 / 315 / 315 in/min
Cutting feed rate 197 in/min
Ball screw diameter / pitch: X/Y/Z X,Z:ø50 x Pitch 10mm Y:ø63 x Pitch 10mm
Feed motor - Fanuc: X/Y/Z α22i / α30i / α22iB
Positioning accuracy* 0.01 mm(JIS Standard)
Repeatability accuracy* 0.006 mm(JIS Standard)
GUIDEWAYS
Type (all axis) Square guide way with turcite B
Way size / spacing (X axis) 7.09+7.09 in. / 30.51 in.
Way max size / spacing (Y axis) 7.87+5.91+5.91+5.9+5.91+7.87 in. / 110.23 in.
Way size / spacing (Z axis) 6.3+6.3 in. / 23.62 in.
COOLANT SYSTEM
Coolant tank capacity 132 gal
Flood coolant pressure 290 psi
GENERAL
Floor space 244.72 x 154.13 x 136.26 in.
Height 136.26 in.
Weight 52910 lbs.
Operator door opening 98.43 in.
POWER REQUIREMENTS
Electrical 40KVA
Air 80-110 psi
