This is a massive, heavily ribbed castings machine with 2 linear roller pack ways on X/Y/Z axis and 2 additional box ways on Y axis. It is equipped with 3 axes linear scales for extra high precision works. It is designed specifically for heavy duty cutting with superior surface finish and is ideal for mold works. Machine weighs over 18,000 lbs.
- FANUC Oi-MF, 10.4” LCD color screen
- Travel : X/Y/Z : 45.3” / 25” / 20.1” (SVL-4525SX-F), 45.3” / 28” / 20.1” (SVL-4528SX-F)

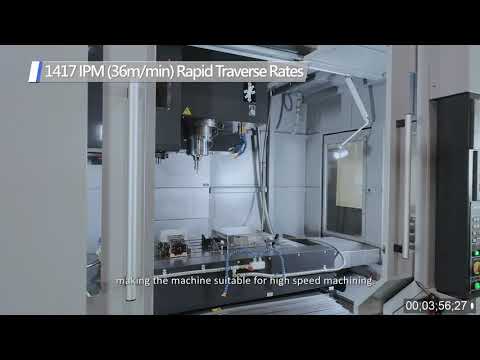

- Table rapid traverse 1,417 ipm
- Table: 51.2″ x 25″
- Spindle: 15k rpm, cat 40 big plus, direct drive, 25 HP motor
- 2 high quality linear roller ways on X/Y/Z axis travel & 2 extra box ways on Y axis travel
- 3 axes Linear Scales (Mitutoyo)
- ATC: Side mount 30 tools
- Position accuracy: X/Y/Z (+/- 0002″)
- Repeatability : X/Y/Z (+/- 00012″)
- Machine size without chip conveyor: W/D/H (171″/ 134″/ 112″)
- Coolant nozzle: 4, air blow nozzle: 1
- Coolant tank capacity: 53 gal
- Electrical: 220V/ 3 Ph/ 35 KVA
WORK CAPACITY
X axis travel 45.3 in. (1150 mm)
Y axis travel 28 in. (711 mm)
Z axis travel 20.1 in. (510 mm)
Spindle nose to table 5.1-25.2 in. (130-640 mm)
Spindle center to column 31.5 in. (800 mm)
WORKTABLE
Table area 51.2 x 25 in. (1300 x 635 mm)
Max. workpiece weight 1760 lbs. (800 kg)
T-Slot (Number x Width x Pitch) 5 x 0.7 x 3.9 in. (5 x 18 x 100 mm)
SPINDLE
Spindle taper CAT-40, Big plus
Spindle speed 15,000 (ceramic bearing)
Spindle motor: cont./30 min 20/25 hp (15/18.5 kw)
Transmission Direct Drive
AUTOMATIC TOOL CHANGER
ATC type Side Mount
Tool capacity 30
Max. tool diameter 2.95 in. (75 mm)
Without adjacent tool 5.9 in. (150 mm)
Max. tool length 11.8 in. (300 mm)
Max. tool weight 15.4 lbs. (7 kg)
Tool change time (tool to tool) 2 sec
Tool change time (chip to chip) 7 sec
Method of tool selection Random
MOTION
Rapid traverse X/Y/Z 1417 ipm (36,000 mm/min)
Cutting feed rate 0.04-1417 ipm (1-36,000 mm/min)
Transmission Direct Drive
Positioning accuracy* 0.0002 in. (0.005 mm)
Repeatability accuracy* 0.00012 in. (0.003 mm)
Ballscrew diameter X/Y/Z 1.57 in. (40 mm)
COOLANT SYSTEM
Coolant tank capacity 52.8 gal (200 L)
Number of Coolant Nozzles 4
MACHINE SIZE
Floor space (w/o chip conveyor) W: 171.5 in. (4356 mm) x 134.3 in. (3410 mm)
Height 112 in. (3100 mm)
Weight 18,260 lbs. (8300 kg)
Operator door opening 45.3 in. (1150 mm)
POWER REQUIREMENTS
Electrical 220V / 3 Phase / 35 KVA / 60 Hz
Air 6 CFM at 88 psi
