New SHARP SVL-4023SX-F | Vertical Machining Centers
Have one to sell?
ConditionNew
New

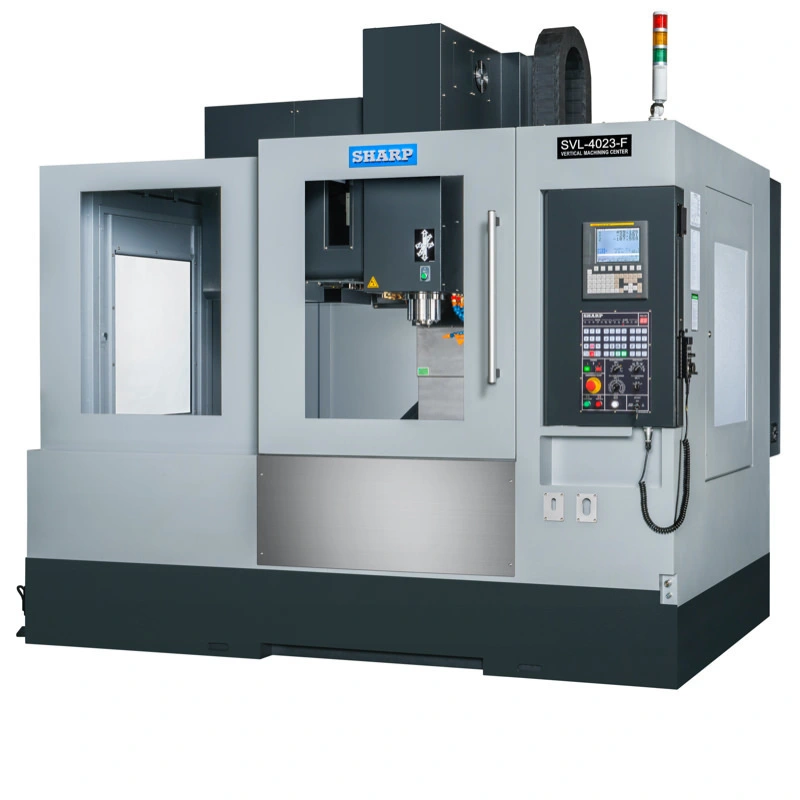

This is a heavy duty machine that can perform extra heavy duty work. The elaborate design of the ribs in the castings offers superior rigidity than other machines of the same size.
- FANUC Oi-MF, 10.4” LCD color screen
- Travel : X/Y/Z : 40.16” / 23.62” / 23.62”
- Table: 45.28″ x 23.62″
- Spindle: 10k rpm, cat 40 dual contact, direct drive, 10/15 HP motor
- Linear roller pack ways
- ATC: Side mount 24 tools
- Position accuracy: X/Y/Z (+/- 0002″)
- Repeatability : X/Y/Z (+/- 00012″)
- Machine size without chip conveyor: W/D(132″/ 108″)
- Coolant nozzle: 4, air blow nozzle: 1
- Coolant tank capacity: 80 gal
- Electrical: 220V/ 3 Ph/ 35 KVA
WORK CAPACITY
X axis travel 41.3 in.
Y axis travel 23.6 in.
Z axis travel 22 in.
Spindle nose to table 5.9-28 in.
Spindle center to column 24.4 in.
WORKTABLE
Table area 49.2 x 23.6 in.
Max. workpiece weight 1726 lbs.
T-Slot (Number x Width x Pitch) 5 x 0.7 x 3.9 in.
SPINDLE
Spindle taper Double contact CAT-40
Spindle speed 12,000 rpm(12K) / 15,000 rpm(15K)
Spindle motor: cont./30 min 10/15 HP
Transmission Direct Drive
AUTOMATIC TOOL CHANGER
ATC type Side Mount
Tool capacity 30
Max. tool diameter 3.1 in.
Without adjacent tool 5.9 in.
Max. tool length 11.8 in.
Max. tool weight 15.4 lbs.
Tool change time (tool to tool) 1.3 sec
Method of tool selection Random
MOTION
Rapid traverse X/Y: 1417 ipm / Z: 1181 ipm
Cutting feed rate 0.04-787 ipm
Transmission Direct Drive
Positioning accuracy* 0.0002 in. within 300 mm range
Repeatability accuracy* 0.0001 in.
Linear guide width, X/Y/Z 1.3 x 1.3 x 1.8 in.
Ball screw diameter, X/Y/Z 1.41 x 1.41 x 1.57 in.
COOLANT SYSTEM
Coolant tank capacity 53 gal
Number of Coolant Nozzles 4
MACHINE SIZE
Floor space (w/o chip conveyor) W: 130 in. x D: 106.6 in.
Height 112 in.
Weight 12,122 lbs.
Operator door opening 50.6 in.
POWER REQUIREMENTS
Electrical 220V/3 Phase / 20 KVA / 60Hz
Air 6 KG/cm2
