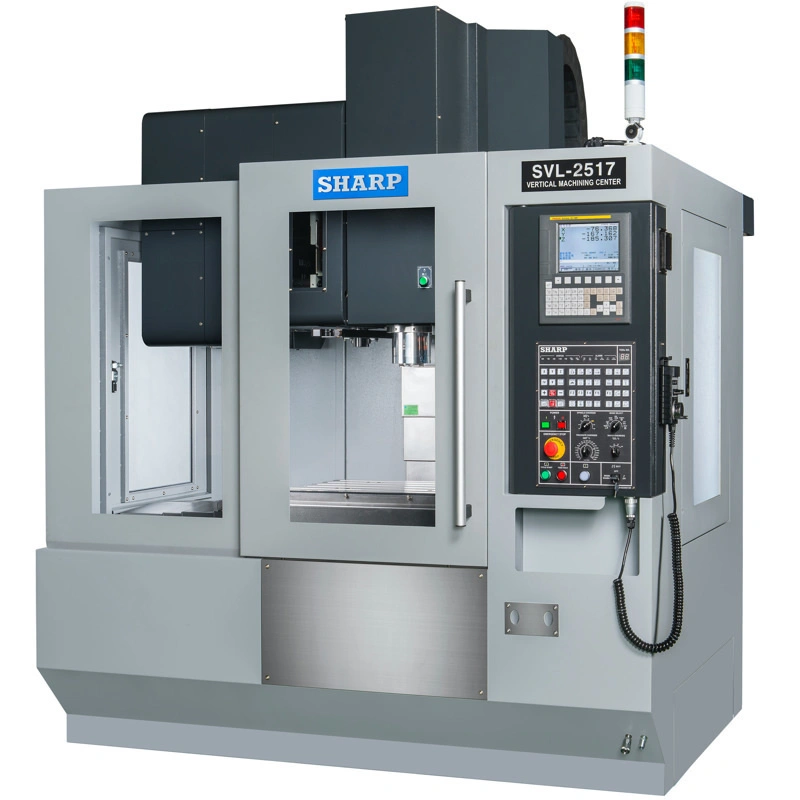

New SHARP SVL-2517 SZ-F | Vertical Machining Centers

WORK CAPACITY
X axis travel 25.20 in. (640 mm)
Y axis travel 17 in. (435 mm)
Z axis travel 23.6 in. (600 mm)
Spindle nose to table 3.94-27.56 in. (100-700 mm)
Spindle center to column 19.29 in. (490 mm)

WORKTABLE
Table area 27.5 x 16.5 in. (700 x 420 mm)
Max. workpiece weight 660 lbs. (300 kg)
T-Slot (Number x Width x Pitch) 5 x 0.7 x 3.14 in. (5 x 18 x 80 mm)

SPINDLE
Spindle taper CAT-40 Big Plus
Spindle speed 12,000 rpm
Spindle motor: cont./30 min 10/15 HP (7.5/11 Kw) Alpha Motor
Torque 52 ft/lb (70 Nm) at 1500 rpm
Transmission Direct Coupling

AUTOMATIC TOOL CHANGER
ATC type Side Mount
Tool capacity 24
Max. tool diameter 3.94 in. (100 mm)
Without adjacent tool 5.9 in. (150 mm)
Max. tool length 9.8 in. (250 mm)
Max. tool weight 15.4 lbs. (7 kg)
Tool change time (tool to tool) 2 sec
Tool change time (chip to chip) 6 sec
Method of tool selection Random

MOTION
Rapid traverse 0.04-1,417 in/min. (1-36,000 mm/min)
Cutting feed rate 0.04-393.7 in/min. (1-1,000 mm/min)
Transmission Direct Drive
Positioning accuracy* 0.00016 in. (0.004 mm)
Repeatability accuracy* 0.00012 in. (0.003 mm)
Ballscrew diameter X/Y/Z 1.26 in. (32 mm)
X/Y/Z servo motors for Fanuc control 1.6/1.6/2.4 HP (1.2/1.2/1.8 Kw)

COOLANT SYSTEM
Coolant tank capacity 42 gal (160 L)
Number of Coolant Nozzles 3

MACHINE SIZE
Floor space
(w/o chip conveyor) W: 79.53 in. x D: 86.46 in. (2020 mm x 2196 mm)
Height 107.9 in. (2740 mm)
Weight 8272 lbs. (3760 kg)
Operator door opening 28.4 in. (720 mm)

POWER REQUIREMENTS
Electrical 220V/3 Phase / 20 KVA / 60Hz
Air 6 CFM at 88 psi
