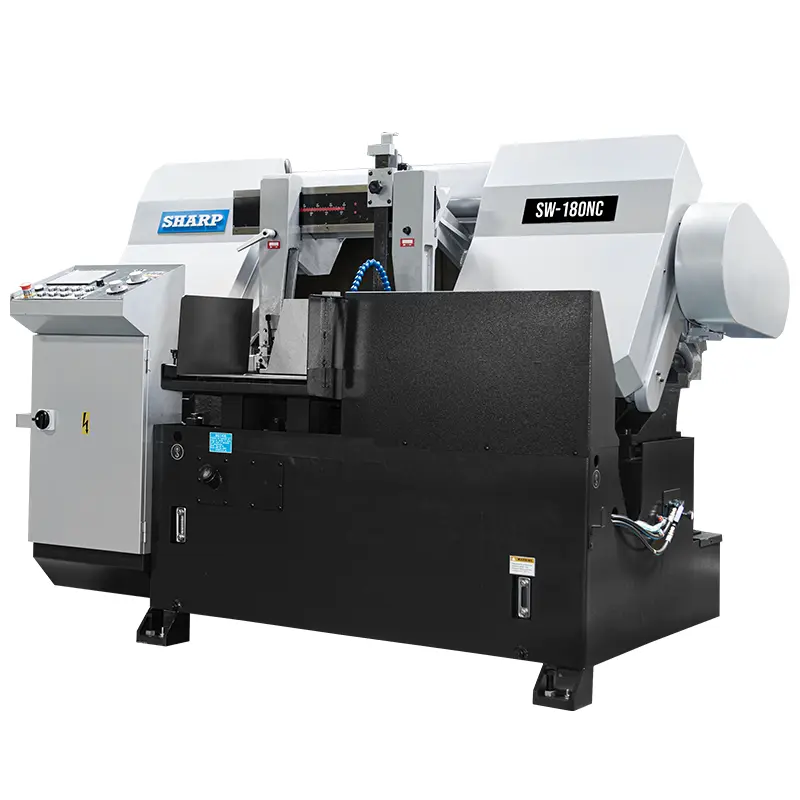

New SHARP SW-180-NC | Horizontal Band Saws
Have one to sell?
ConditionNew
New
This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.
- 18” round, 18.1” square, 18.1” x 18.1” rectangular cutting capacity, 7.5 HP
- NC operating panel with touch screen
- Hydraulic saw frame with heavy duty ball joint for powerful down feed
- Back tilt saw head design to reduce saw twisting between wheel and blade guide
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
MAXIMUM CUTTING CAPACITY
Round 18.5 in.
Square 18.5 in.
Rectangle 18.5 x 18.5 in.
SAW BLADE
Speed 60-330 fpm
Size 1 1/2 x .050 x 198"
Tension Hydraulic
Guide Interchangeable tungsten carbide
Cleaning Steel wire brush with flexible drive shaft driven by main motor
MOTOR OUTPUT
Saw Blade 7.5 HP
Hydraulic 2 HP
Coolant 0.25 HP
TANK CAPACITY
Hydraulic Oil 22.3 gal
Coolant 31.7 gal
FEED
Mode Hydraulic / NC Automatic
Length Single Stroke: 0 to 19.68 in.
Multi stroke: 0 to 324.8 in.
GENERAL
Vise Control Hydraulic with full stroke cylinder
Net Weight 5071 lb
Gross Weight 5511 lb
Floor Space (L x W x H) 7.61 x 8.12 x 8.20 ft.
