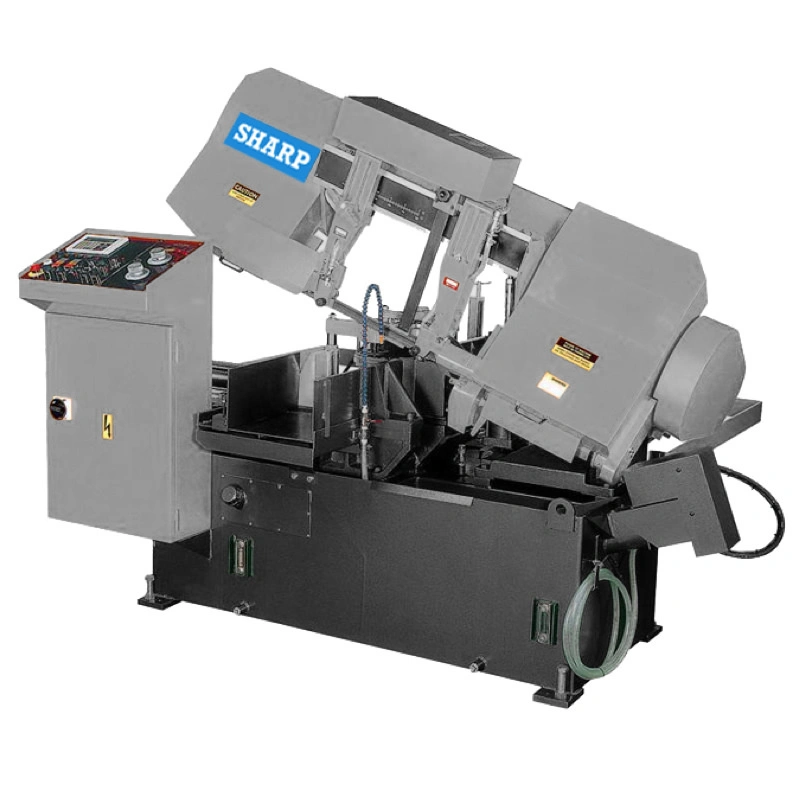

New SHARP SW-100-NC | Horizontal Band Saws
Have one to sell?
ConditionNew
New
This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.
- 10” round, 10” square, 10” x 11” rectangular cutting capacity, 3 HP
- NC operating panel with touch screen
- Hydraulic saw frame with heavy duty ball joint for powerful down feed
- Back tilt saw head design to reduce saw twisting between wheel and blade guide
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
MAXIMUM CUTTING CAPACITY
Round 10
Square 10
Rectangle 10 x 11
SAW BLADE
Speed 66~328 fpm
Size 1 1/4 x .042 x 138"
Tension Hydraulic
Guide Interchangeable tungsten carbide
Cleaning Steel wire brush with flexible drive shaft driven by main motor
TANK CAPACITY
Hydraulic Oil 5.3 gal
Coolant 11.9 gal
MOTOR OUTPUT
Saw Blade 3 HP
Hydraulic 1 HP
Coolant 0.125 HP
FEED
Mode Hydraulic / NC Automatic
Length Single Stroke: 15.9 in.
Multi Stroke: Max. 999 in.
Rest Piece (automatic): 2 in.
GENERAL
Vise Control Hydraulic with full stroke cylinder
Net Weight 3300 lbs.
Gross Weight 3750 lbs.
Floor Space (L x W x H) 7.45 x 6.66 x 5.25 ft.
