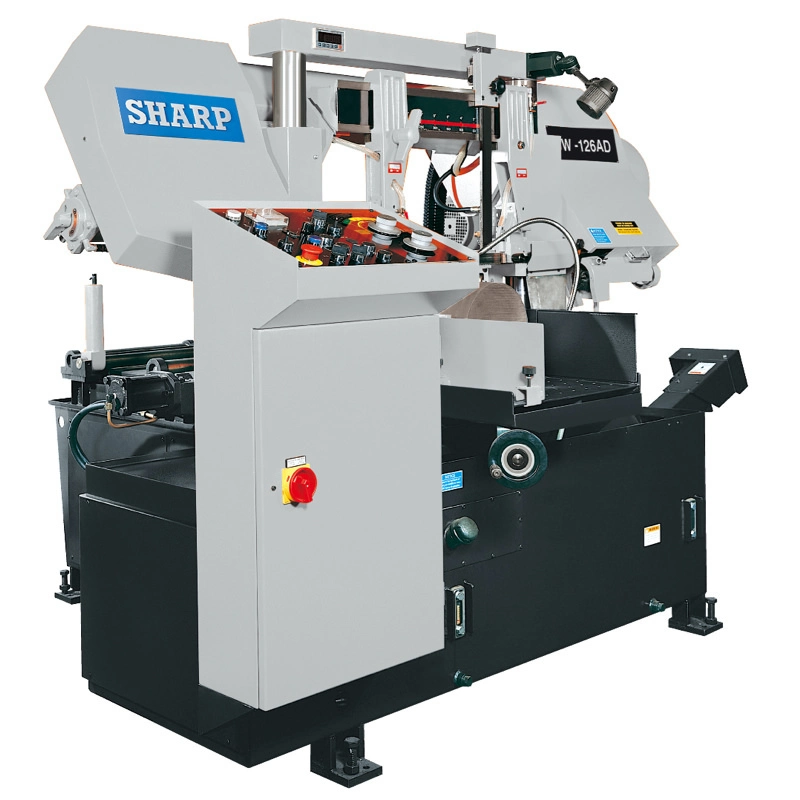

New SHARP SW-126AD | Horizontal Band Saws
Have one to sell?
ConditionNew
New
This heavy duty double column automatic band saw is a high production machine with hydraulic double column saw frame and gear box to exert lateral cutting force. The double column design keeps the blade parallel to the material at all times creating consistent force throughout the entire cutting cycle.
- 6” round, 12.6” square, 12.6” x 15” rectangular cutting capacity, and 5 HP.
- PLC controls hydraulic and electric system
- Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
- Automatic hydraulic blade tensioning provide proper tensioning during and after machining
- Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
- Gearbox blade drive for heavy duty cutting
MAXIMUM CUTTING CAPICITY
Round 12.6
Square 12.6
Rectangle (H x W) 12.6 x 15
SAW BLADE
Speed (Inverter driven variable speed) 66-328 fpm
Size 1 1/4 x .042 x 167"
Tension Hydraulic controlled
Guide Tungsten Carbide Blade Guide
Cleaning Wire Brush
MOTOR OUTPUT
Saw Blade 5 HP
Hydraulic 1 HP
Coolant 0.12 HP
TANK CAPACITY
Hydraulic Oil 6.60 gallons
Coolant 11.88 gallons
FEED
Mode Hydraulic / Automatic
Length Single stroke: 15.9 in.
- 9 times: max. 141 in.
GENERAL
Vise Control Split front vise and hydraulic shuttle vise
Net Weight 4400 lbs.
Gross Weight 4840 lbs.
Floor Space (L x W x H) 6.58 x 6.58 x 4.91 ft.
