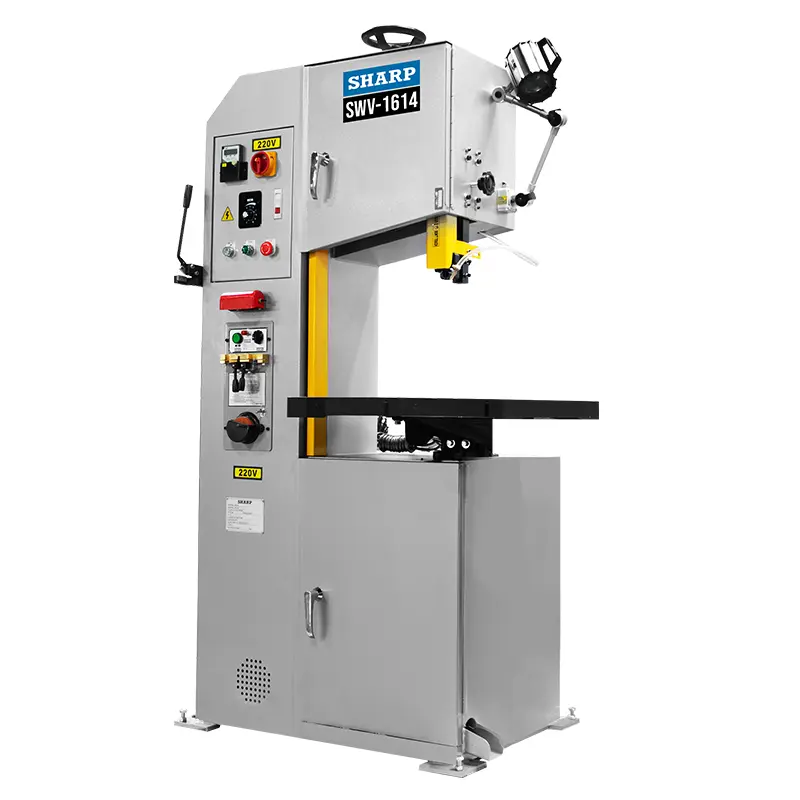

New SHARP SWV-1614 | Vertical Band Saws

Description

Sharp ‘s multi-function design along with easy operating system makes our vertical contour band saw suitable for cutting a wide range of materials. The superior flexibility allows users to accurately cut contour shapes, straight cuts and even make internal cuts on one self-contained machine.

The Sharp Vertical Band saw is one of the most versatile machines on the market today. It’s multi-purpose design, inverter drive, and heavily constructed base allows the machine to cut smoothly even while operating at a high-speed range: 30m~400m/min or 98 ft. to 1,510 ft./min.

With just the turn of a knob the band speed is digitally displayed and is easily adjusted for the material being cut from 118 to 1,510 ft/min. This allows the machine to cut effectively, and accurately, on a very broad range of materials.

One of the biggest advantages this versatile machine provides is allowing the operator to make straight, contour, or internal cuts on metal, wood, plastic, etc.

- Infinite Variable Blade Speed
The ­­­­inverter drive with the digitally displayed band speed range makes the machine ideal for cutting a wide variety of materials.
- LED Industrial Work light
The work light allows the operator to easily see exactly where the band saw blade is cutting.
- The One Piece Construction
Increases the rigidity of the machine reducing vibration in the sawing process for increased productivity and long blade life.
- Manual Band Tension & Indicator
This allows for the proper tensioning of the band saw blade based on the width of the blade being used.
- Post Elevation Retention Knob
This allows for proper positioning to the upper saw guide for more accurate cutting and longer blade life.
- Cast Iron Table
Provides for a very rigid working surface for the parts being cut.
- Rip Fence
Make cutting of straight cuts of any length very simple for operator.
- Chip Blower
Make it easy to see scribed line during cutting process.
- Blade Shear
Allows the operator to cut the blade to the appropriate length at the machine before welding greatly enhancing convenience.
- Blade Welder
Compared with the general design of copper material, Sharp uses the gold-plated welding port that are less likely to oxidize and affect the welding process. This standard feature allows the operator to thread the saw blade thought a hole in the part, re-weld the sawblade at the machine, and perform internal cutting. This process increases productivity and saves money.
- Built in Blade Grinder
Allows the operator to grind off the slag created in the blade welding process at the saw.
- Power Button
Conveniently located on the front of the machine for easy operation.
- Blade Guides & Back up Bearing
Tungsten carbide tipped for extended life and accuracy of cut.
- Brush For Cleaning Drive Wheel
Eliminates chip interference in the cutting process
