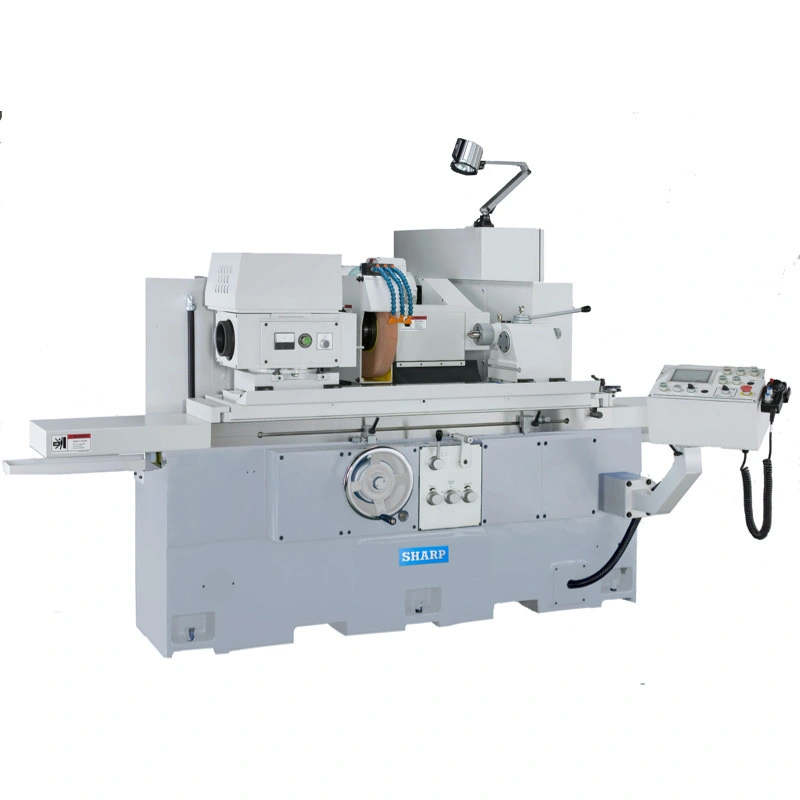

New SHARP OD – 1020HE | Universal Cylindrical Grinders
Have one to sell?
ConditionNew
New
This model with manual wheel head infeed can grind work piece of up to 10” diameter and 20” length. Table feed is hydraulic.
- 10″ max diameter, 20″ length
- 5 HP motor
- Auto table feed
- 16″ x 2″ x 5″ wheel
- Manual wheel head infeed
- Work head spindle runout 0.000050″ TIR
- Spindle, wheel head & work head have variable speed drive
- Table can swivel for taper grinding
This model with manual wheel head infeed can grind work piece of up to 10” diameter and 20” length. Table feed is hydraulic.
- 10″ max diameter, 20″ length
- 5 HP motor
- Auto table feed
- 16″ x 2″ x 5″ wheel
- Manual wheel head infeed
- Work head spindle runout 0.000050″ TIR
- Spindle, wheel head & work head have variable speed drive
- Table can swivel for taper grinding
Imperial
| Swing | 10.2" |
| Centers | 19.7" |
| Power | 5 hp |
| Workhead Power | 0.5 hp |
| Workhead Speed | 1,800 RPM |
| Grinding Wheel Dia. | 16" |
| Max Weight Between Centers | 176 lb |
| Weight | 6,160 lbs. |
