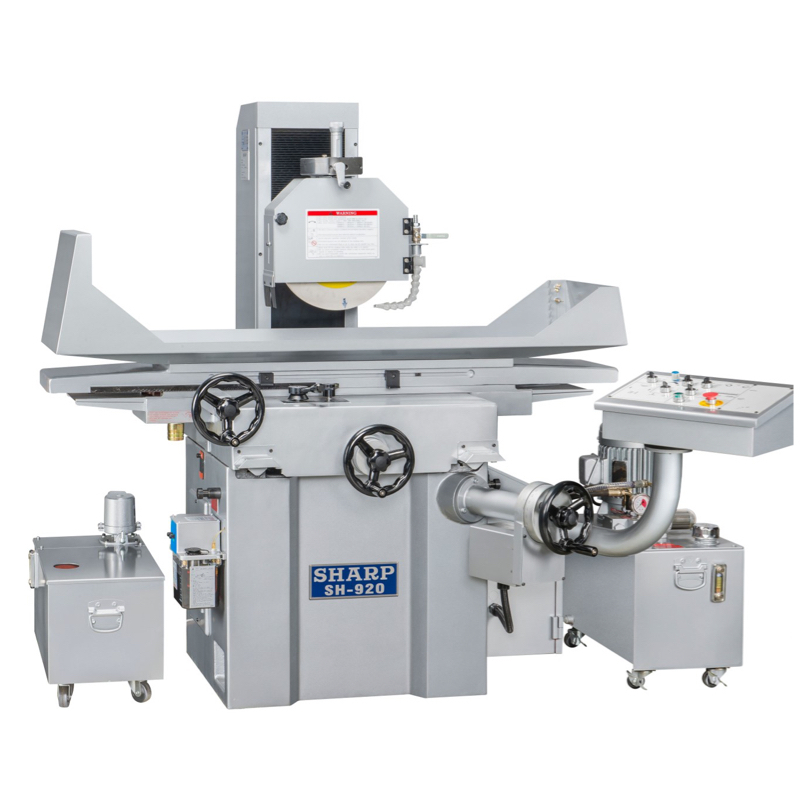

New SHARP SH-920-2A | Reciprocating Surface Grinders
Have one to sell?
ConditionNew
New
The model has automatic longitudinal and cross feed. It offers intermittent and continuous cross feed. The table and saddle both has double V ways. The NC spindle downfeed system is optional.
- 2-way auto (longitudinal and cross)
- Optional NC downfeed with ballscrew and servo feed
- 3 HP motor
- Spindle speed 1,720 rpm
- Extra wide bed
- Double longitudinal “V” ways and cross “V” ways
- Hydraulic table (w/ over travel protection) with pre-set functions
- Auto crossfeed (intermittent and continuous mode)
- Slide ways are hand scraped and TURCITE coated
CAPACITY
Max Distance : Table to Spindle Center 20 in.
TABLE
Table Size 9 x 20 in.
Longitudinal Travel 26 in.
Cross Travel 11 in.
LONGITUDINAL FEED OF TABLE
Hand Feed Per Revolution 0.1 in.
Hydraulic Feed 6.6-82 ipm
CROSS FEED OF SADDLE
Hand Feed Per Revolution 0.1 in.
Hand Wheel Graduation 0.0005 in
Intermittent Feed 0.0039-0.39 in./feed
Continuous Traverse Feed 39.37 in./min
VERTICAL FEED OF WHEEL
Hand Feed Per Revolution 0.05 in.
Hand Wheel Graduation 0.0001 in.
NC Down Feed 18.9 ipm
MOTORS
Spindle 3 HP
GENERAL
Floor Area (W x H x L) n/a
Approximate Weight 3,800 lbs.
Power Consumption (220V) 5.4 KVA/25 amps
