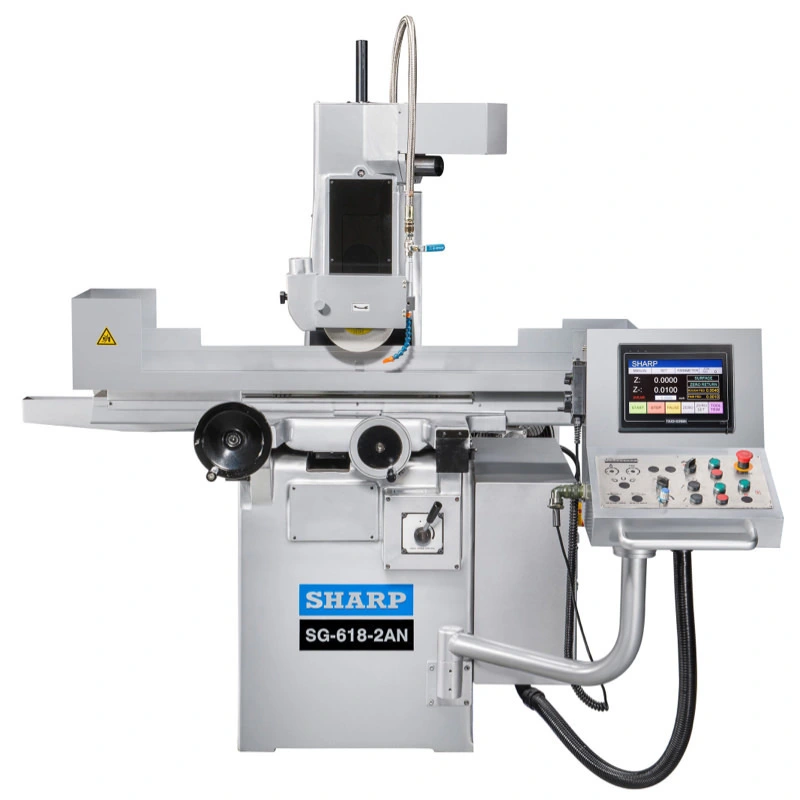

SHARP SG618-2AN WITH NC SPINDLE DOWNFEED

Description

The model has NC spindle downfeed, hydraulic table feed and motorized cross saddle feed. It is designed with auto grinding cycle, spark out, auto return to zero, traverse and plunge grinding cycle.

- 6” x 18” table, 7” x 21.6” travel
- 2 HP spindle motor – 3,420 rpm
- Turcite ways
- Ball screw on cross
- NC spindle downfeed
- Slide ways are hand scraped and coated w/ TURCITE
- Hydraulic table feed
- Automatic crossfeed
- Accurate slot-grinding capability
- Hydraulic table stroke setting
- Double “v” way cross travel
- One “v”, one flat way longitudinal travel
