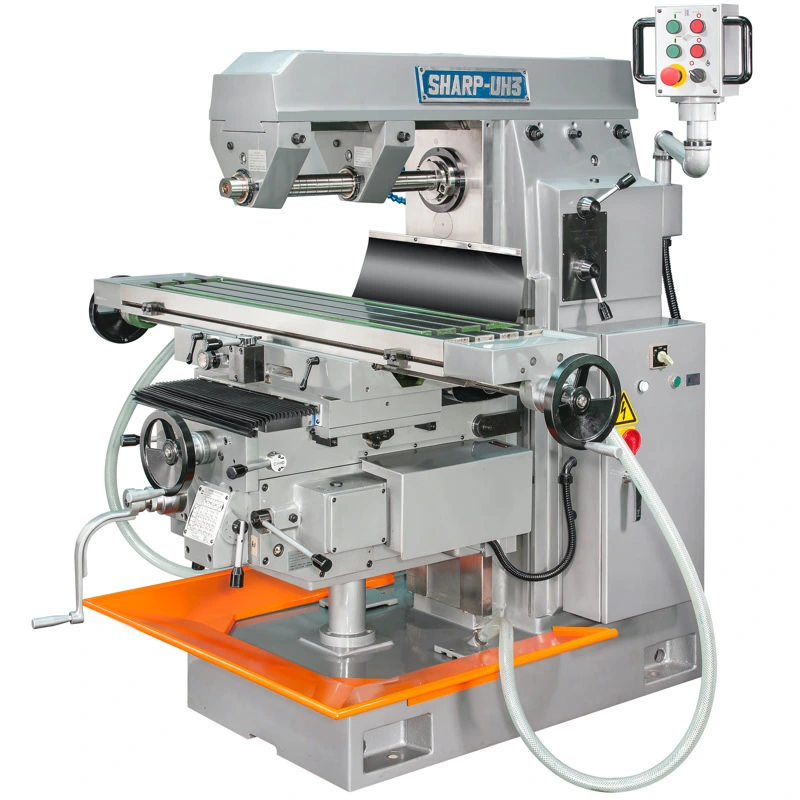

New SHARP UH-3 | Plain Horizontal Mills

Description

The machine employs cutting heads similar to small circular saws that are mounted on a horizontal arbor. In this model the arbor stretches across the entire length of the bed, multiple cutters can be installed. The UH3 has universal table that swivels it provides milling at different angles. It is great for gear and spline cutting, It is also very handy for squaring up the edges of big pieces of plate, and for drilling holes in the ends and edges of larger size parts that cannot be fit under the spindle of a vertical mill.

- 12 x 51.2 ins table, 14.8 x37.4 ins travel
- NST #50 taper, 7.5 hp
- 12 speeds, gear head spindle
- Table swivel 45 degree each way
- Built-in motor that drives the feed and rapids of table, saddle and knee
- Hardened and ground box ways
- Built-in coolant system
