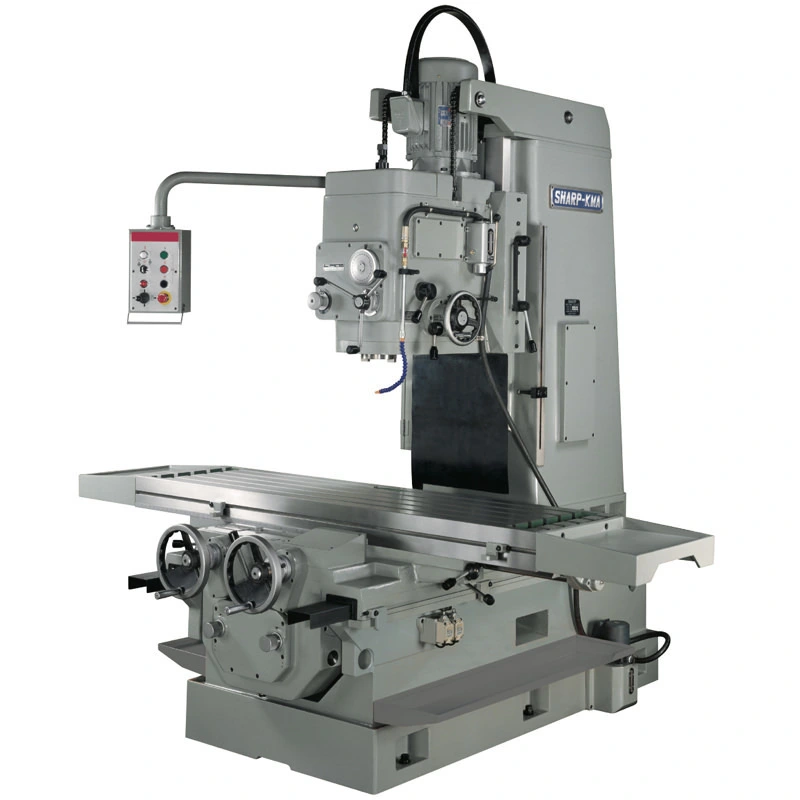

New SHARP KMA-2 | Bed Type Mills
Have one to sell?
$75,000.00 USD
ConditionNew
New
Bed type vertical mills are ideal for milling large work piece or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 20” that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amount of metals in one pass. Even though the geared vertical head is huge, it travels smoothly by cranking the eye level tri-lever handle.
- 18” x 75” table
- Travels: 17.6” x 47.25” travel
- Vertical head travel 22”, fixed quill
- NST #50 taper spindle
- 15 HP motor
- Hardened and ground box ways
- Fully ribbed castings on column, table and saddle to make it a rigid structure
- Double nut backlash eliminator
- Eye-level lever control for vertical head rapid traverse
- Built-in coolant tank
- 4 way toggle control table rapid traverse
CAPACITY INCH METRIC
Table Size 74.81 x 17.68 in. 1900.17 x 449.07 mm
T-slots (No.x Width x Pitch) 5 x 0.7 x 3.12 in.
5 x 17.78 x 79.24 mm
Table Travel: X Longitudinal 47.25 in. 1200.15 mm
Table Travel: Y Cross 17.68 in. 449.07 mm
Vertical Head Travel 21.62 in. 549.14 mm
Spindle Center to Column 17.68 in. 449.07 mm
Spindle Nose to Table 3.93 to 25.62 in. 99.8 to 650.74 mm
TABLE FEEDS, RAPIDS INCH METRIC
Longitudinal Feeds (Variable) 1.12-34.43 in. 28.44-874.52 mm
Longitudinal Rapids 113.37 in. 2879.59 mm
Cross Feeds (Variable) 0.002 to 0.008 in. 0.050 to 0.203 mm
Cross Rapids
VERTICAL HEAD INCH METRIC
Spindle Taper NST #50
Spindle Speeds 45-1500 rpm
Vertical Head Travel 12 steps
Vertical Head Feeds
0.002-0.008 in./rev
0.050-0.203 mm/rev
MOTORS INCH METRIC
Vertical Spindle
15 HP
5.59 Kw
Table Feed and Rapid 2 HP 1.49 Kw
Coolant System 1/8 HP 0.093 Kw
GENERAL INCH METRIC
Floor Area (W x D x H) 12.46 x 7.25 x 8.53 ft. 3.79 x 2.20 x 2.59 M
Approximate Weight
11,440 lbs.
5,200 Kg
Power Consumption (220V) 45 amps
Power Consumption (440V) 22.5 amps
All specifications subject to change without notice. Please call to verify.
